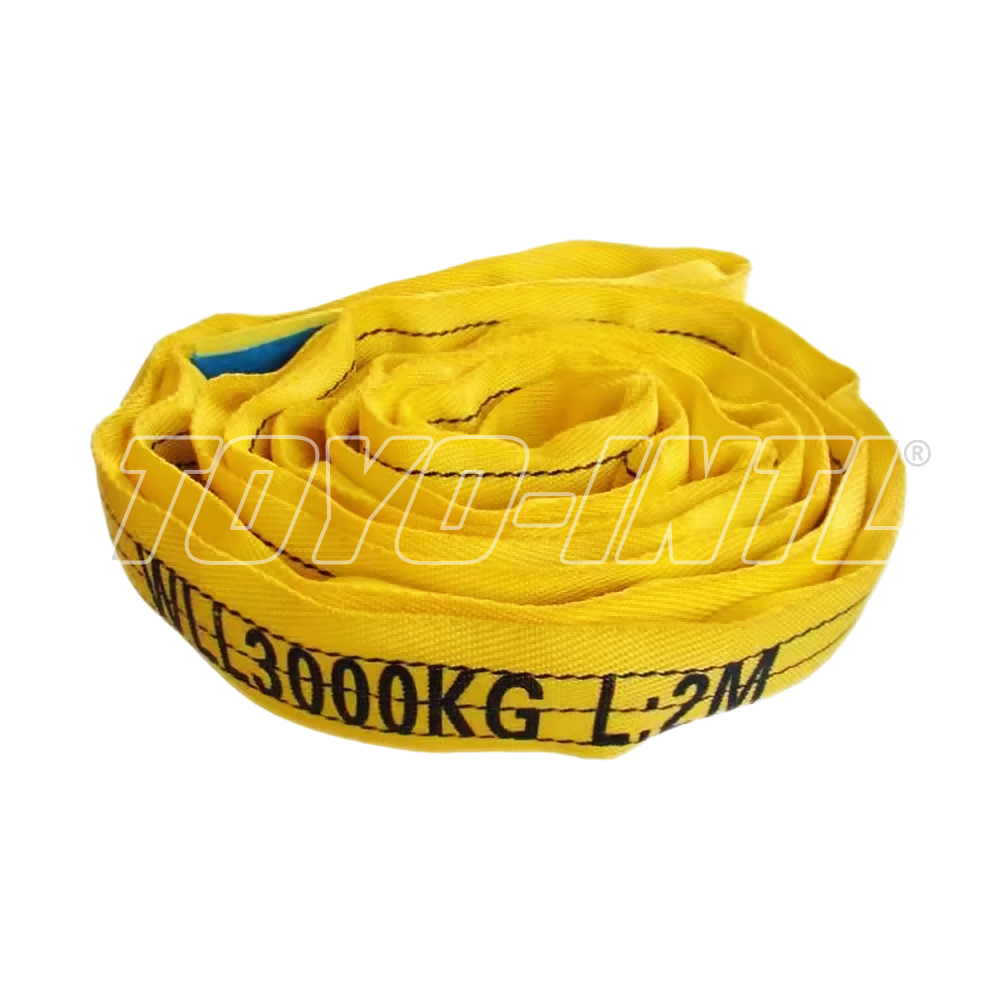

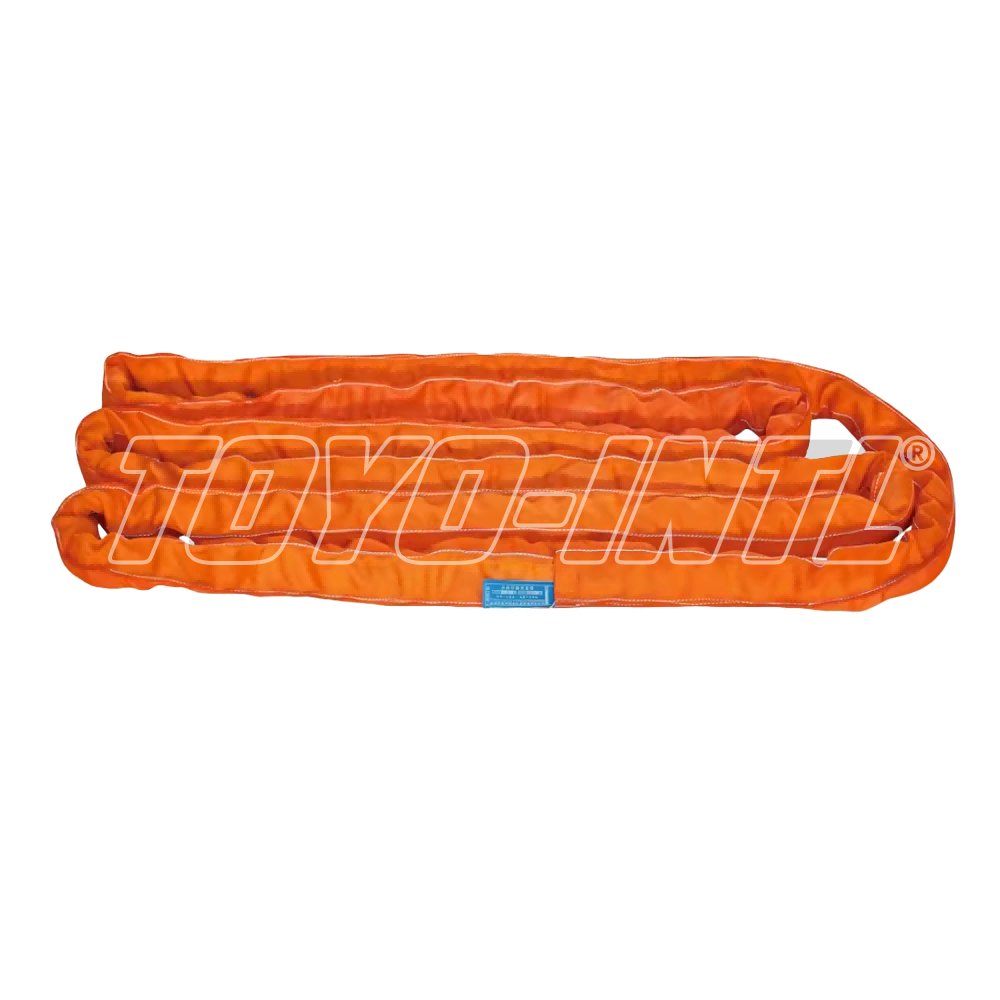

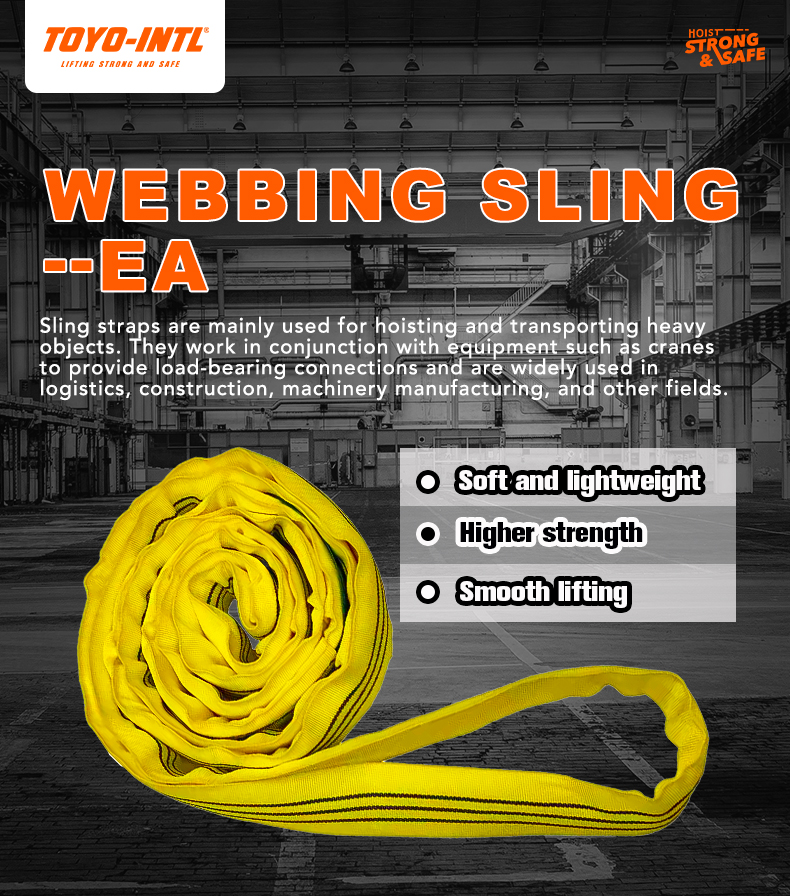

TOYO-INTL EA Round Sling

Categories: TEXTILE SLING & FIBER ROPE

Why Choose TOYO-INTL

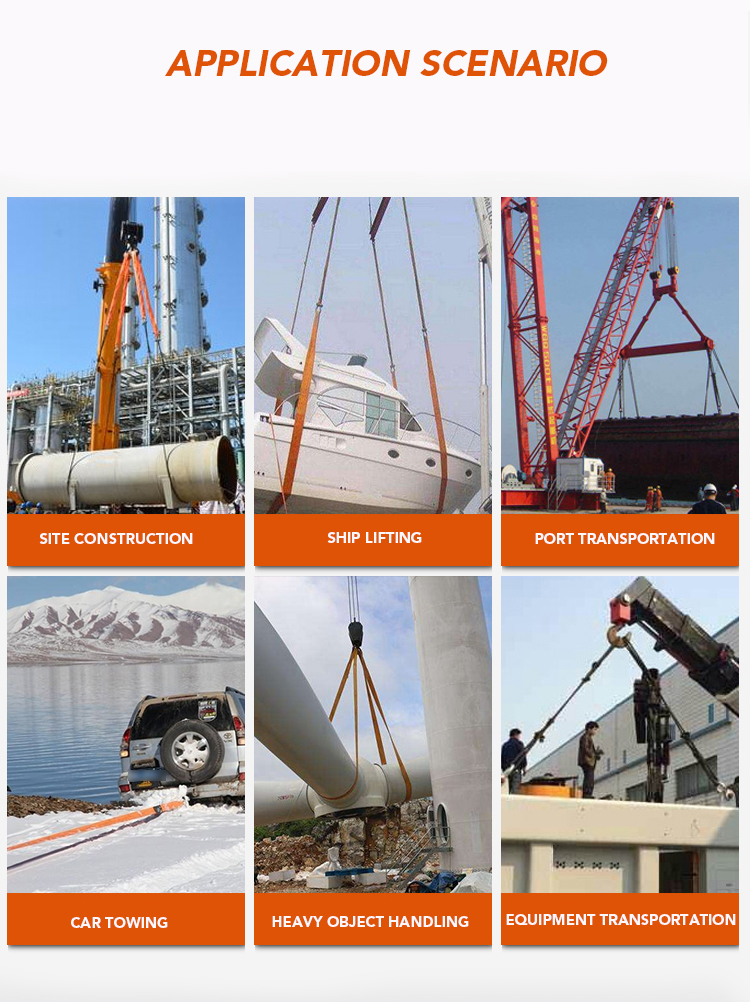

The EA round sling is stated to handle round objects.
It uses high-tensile industrial yarn specified as 100% polyester/100KPES.
Internal strands are arranged in an endless loop.
The outer 100KPES sleeve protects the inner strands and is not intended as the load-bearing layer.
The image states a maximum capacity of up to 3000 tons and an effective length of up to 100 m.
The stated safety factor is typically 7:1 or 6:1.

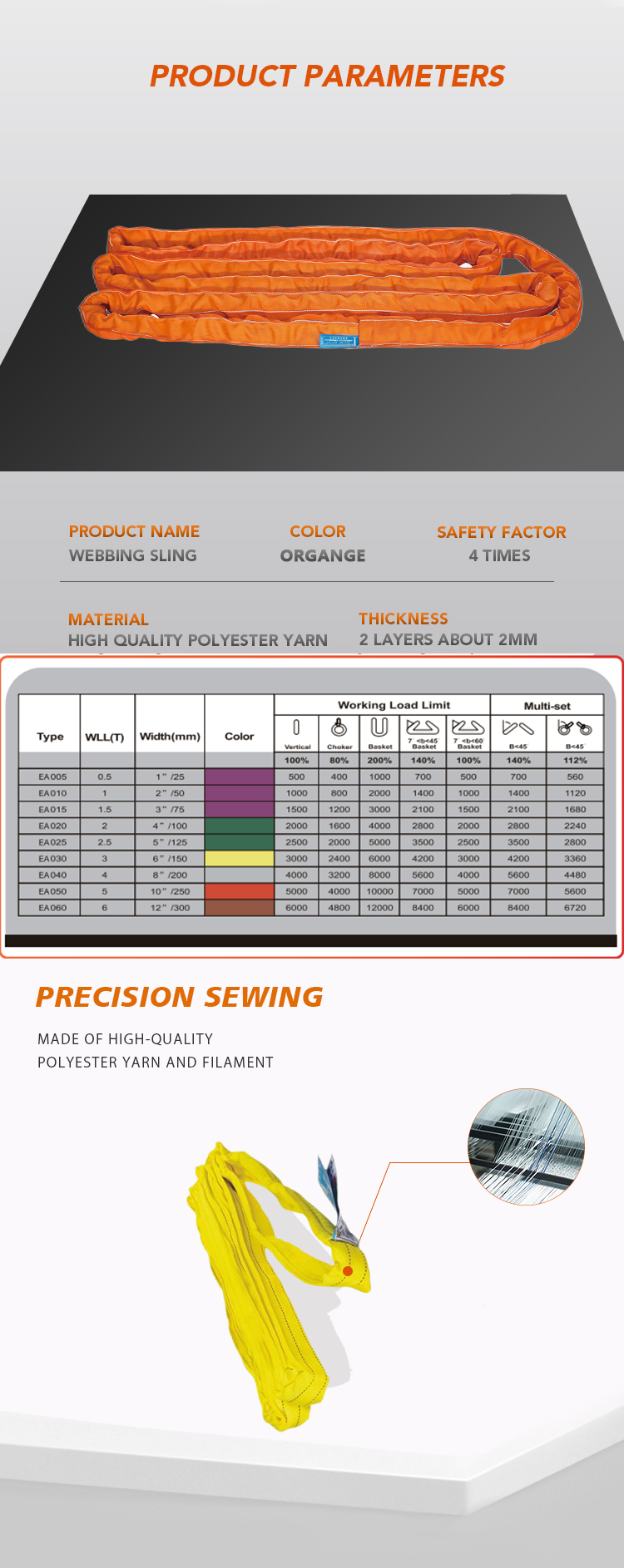

The table provides vertical, choker, basket, and multi-set working-load values.

0086-022-59892153 Copied!

+86 177 2540 7738 Copied!

sales@toyohoisting.com Copied!

Code	WLL (T)	Width (mm)	Color swatch	Vertical 100%	Choker 80%	Basket 200%	7°<b<45° basket 140%	7°<b<60° basket 100%	Multi-set B<45° 140%	Multi-set B<45° 112%
EA005	0.5	1″/25	purple	500	400	1000	700	500	700	560
EA010	1	2″/50	purple	1000	800	2000	1400	1000	1400	1120
EA015	1.5	3″/75	purple	1500	1200	3000	2100	1500	2100	1680
EA020	2	4″/100	green	2000	1600	4000	2800	2000	2800	2240
EA025	2.5	5″/125	green	2500	2000	5000	3500	2500	3500	2800
EA030	3	6″/150	yellow	3000	2400	6000	4200	3000	4200	3360
EA040	4	8″/200	—	4000	3200	8000	5600	4000	5600	4480
EA050	5	10″/250	red	5000	4000	10000	7000	5000	7000	5600
EA060	6	12″/300	brown	6000	4800	12000	8400	6000	8400	6720
