TEXTILE SLING & FIBER ROPE

TOYO-INTL EB Textile Sling

Categories: TEXTILE SLING & FIBER ROPE

Why Choose TOYO-INTL

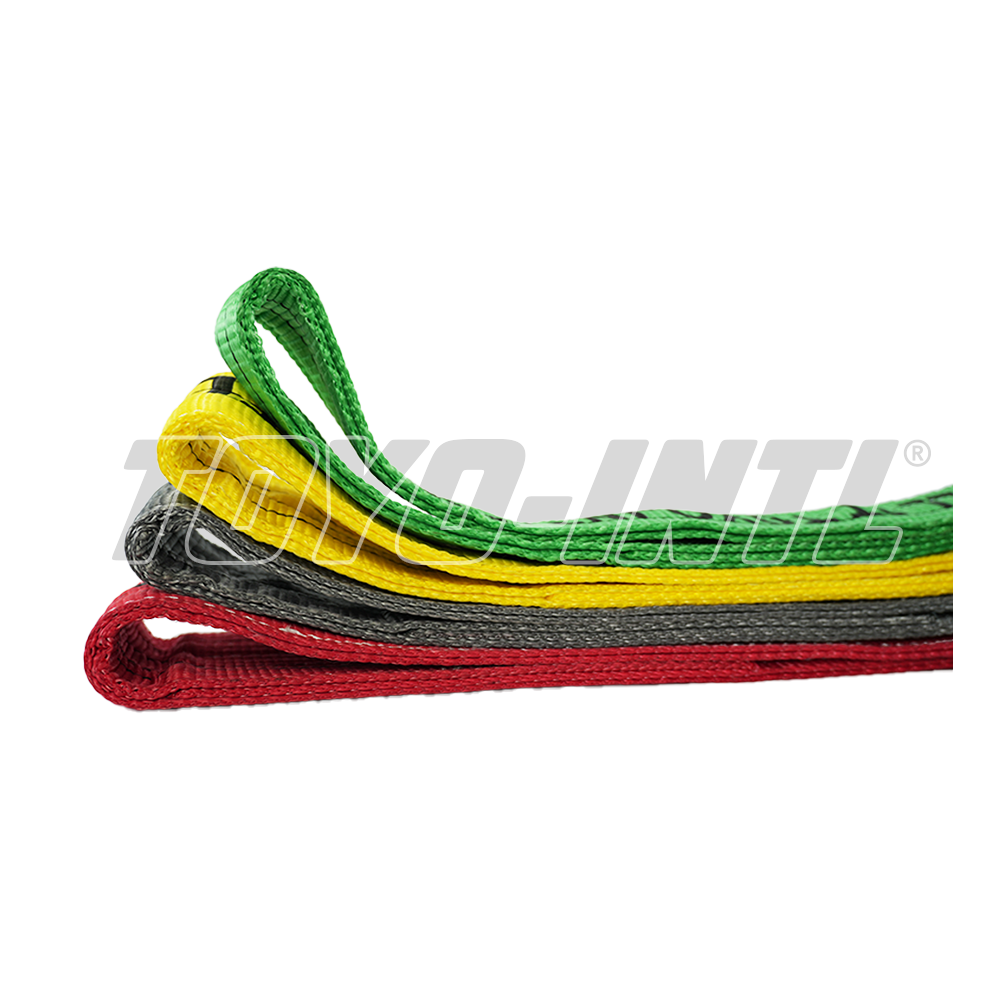

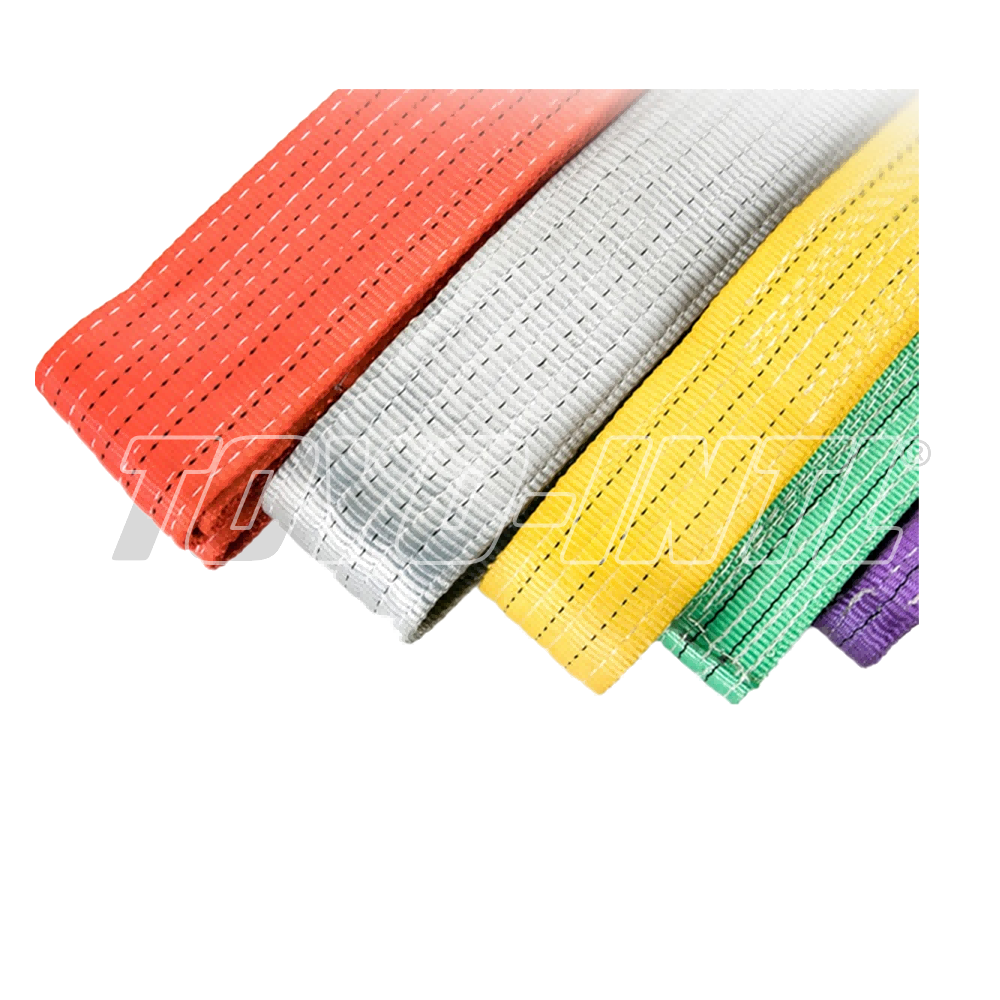

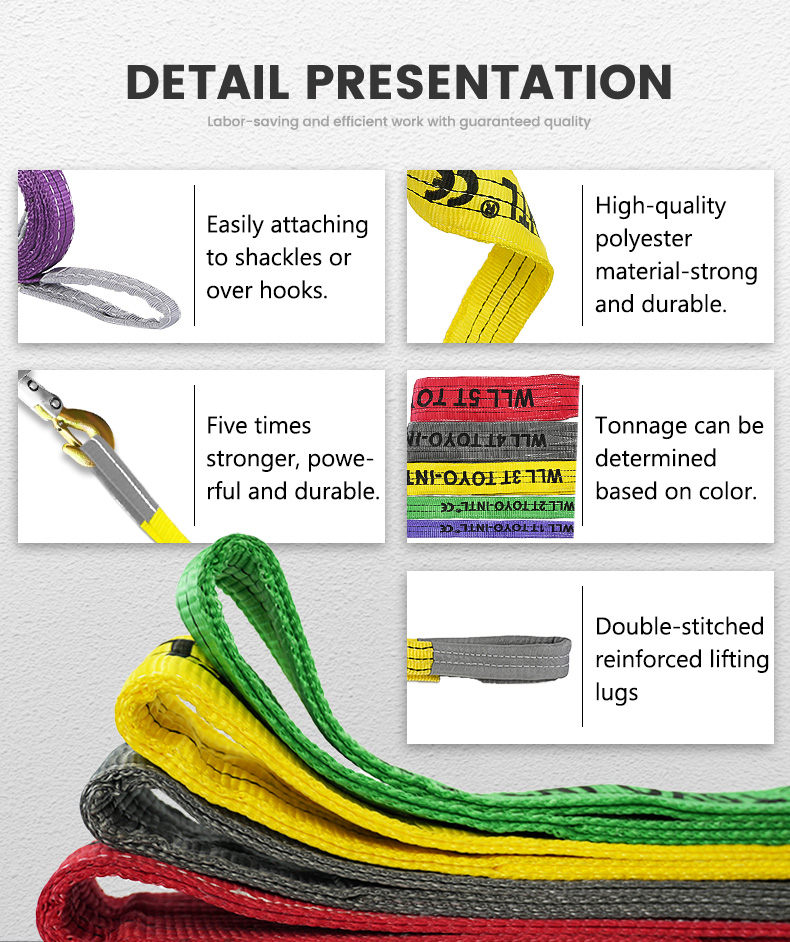

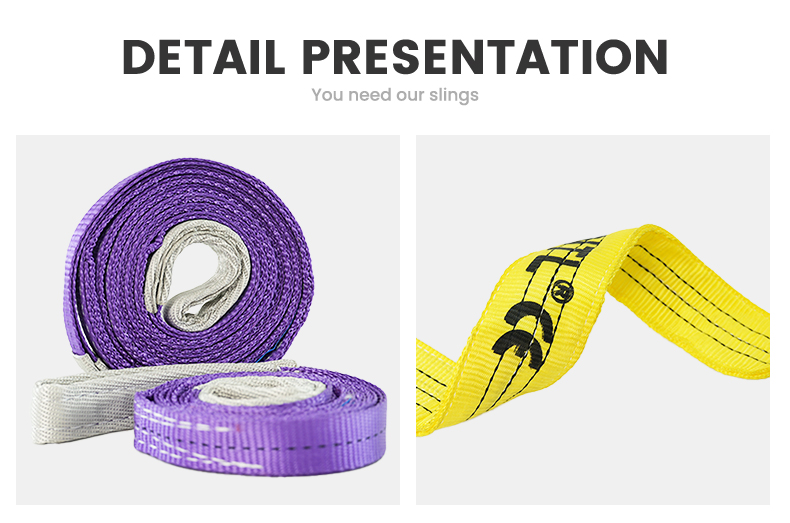

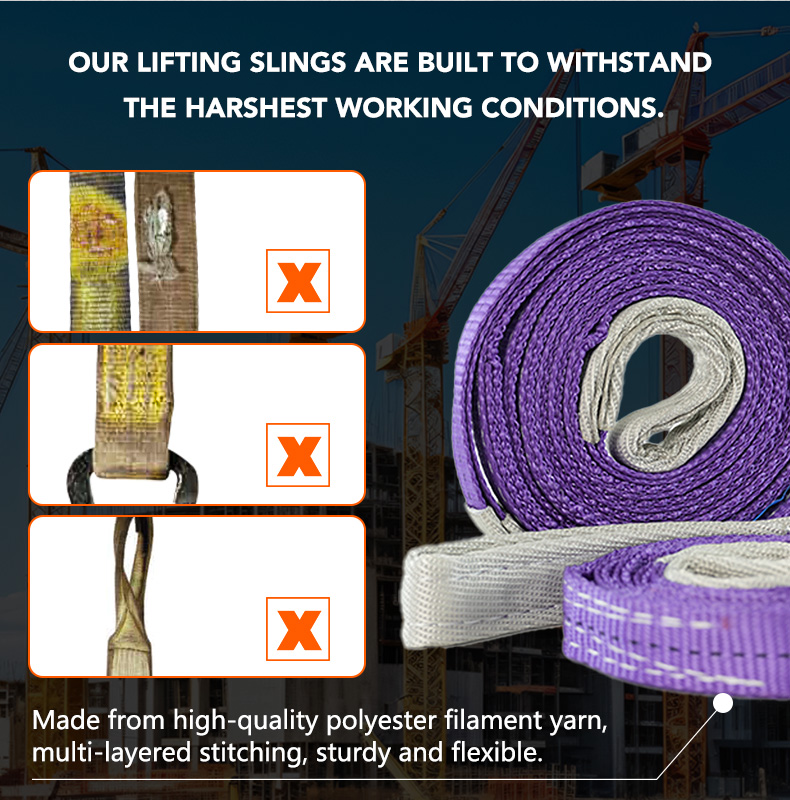

The EB is a double-ply polyester web sling with reinforced lifting eyes.

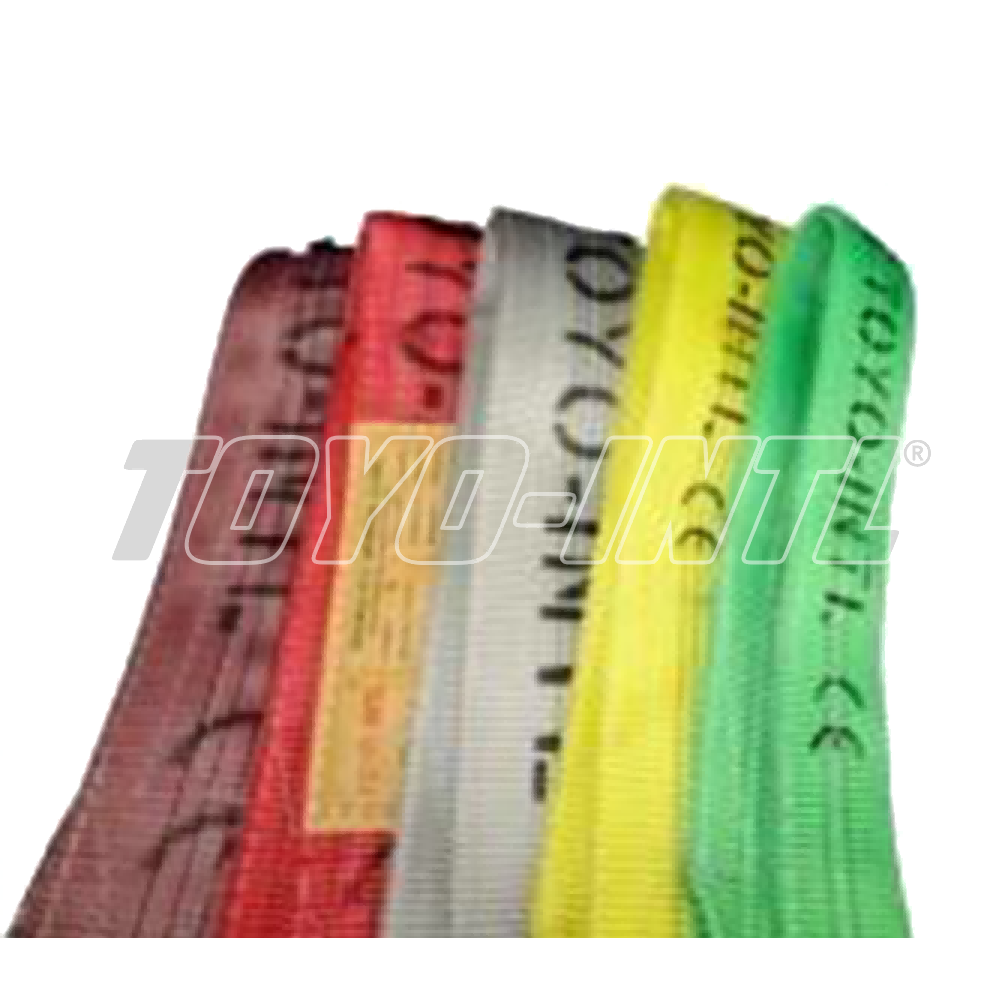

Web sling colors are stated to follow EN 1492-1 (7:1) coding.
Each sling is supplied with a CE declaration of conformity.
The image lists approximately 12% elongation at breaking force and approximately 3% elongation at WLL.
Wet-condition elongation resistance is listed as 100%, with compared wear resistance listed as 80.

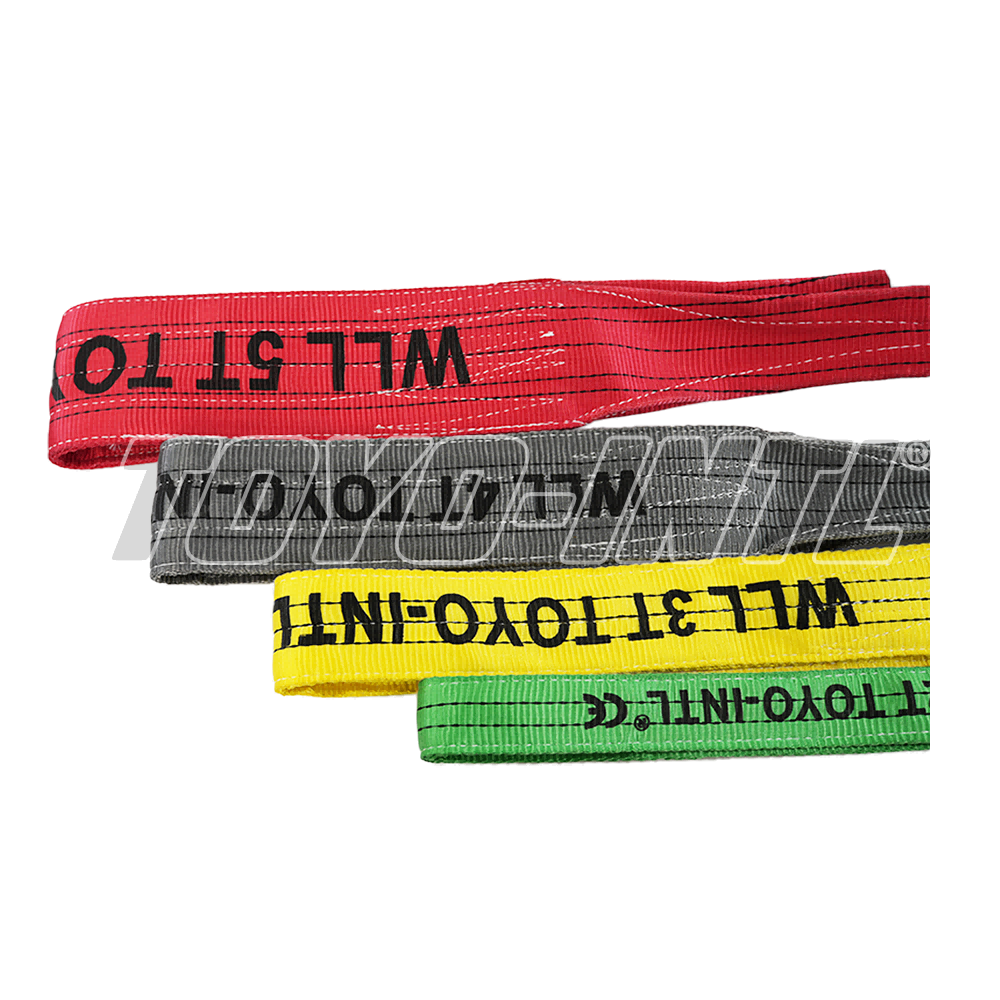

The product identity panel describes a TOYO webbing-sling label tag on polyester material.

0086-022-59892153 Copied!

+86 177 2540 7738 Copied!

sales@toyohoisting.com Copied!

Field	Printed value
Elongation at breaking force	ca. 12%
Elongation at WLL	ca. 3%
Elongation — resistance in wet condition	100%
Compared wear-resistance	80
Specific weight	1.38

Code	Color swatch	Single upright	Single choked	Single β 0°–7°	Single β 7°–45°	Single β 45°–60°	Single β 45°	2-leg upright 45°	2-leg choked 45°	2-leg upright 45°–60°	2-leg choked 45°–60°	Approx. width 5:1 (mm)	Approx. width 6:1 (mm)	Approx. width 7:1 (mm)	Min. length (m)	Max. length (m)
EB-01	purple	1000	800	2000	1400	1000	700	1400	1120	1000	800	25	25	30	1	100
EB-02	green	2000	1600	4000	2800	2000	1400	2800	2240	2000	1600	50	50	60	1	100
EB-03	yellow	3000	2400	6000	4200	3000	2100	4200	3360	3000	2400	75	75	90	1	100
EB-04	gray	4000	3200	8000	5600	4000	2800	5600	4480	4000	3200	100	100	120	1	100
EB-05	red	5000	4000	10000	7000	5000	3500	7000	5600	5000	4000	125	125	150	1	100
EB-06	dark red	6000	4800	12000	8400	6000	4200	8400	6720	6000	4800	150	150	180	1	100
EB-08	blue	8000	6400	16000	11200	8000	5600	11200	8960	8000	6400	200	200	240	1	100
EB-10	orange	10000	8000	20000	14000	10000	7000	14000	11200	10000	8000	250	250	300	1	100
EB-12	orange	12000	9600	24000	16800	12000	8400	16800	13440	12000	9600	300	300	300	1	100
EB-15	blue	15000	12000	30000	21000	15000	10500	21000	16800	15000	12000	200	200	240	1	100
EB-20	orange	20000	16000	40000	28000	20000	14000	28000	22400	20000	16000	250	250	300	1	100
EB-25	orange	25000	20000	50000	35000	25000	17500	35000	28000	25000	20000	300	300	300	1	100
EB-30	orange	30000	24000	60000	42000	30000	21000	42000	33600	30000	24000	300	300	300	1	100
EB-40	orange	40000	32000	80000	56000	40000	28000	56000	44800	40000	32000	—	—	—	1	100
EB-50	orange	50000	40000	100000	70000	50000	35000	70000	56000	50000	40000	—	—	—	1	100
