HOOK & LINK

TOYO-INTL Eye ALLOY STEEL SAFETY HOOK

Categories: HOOK & LINK

Why Choose TOYO-INTL

Product Description:

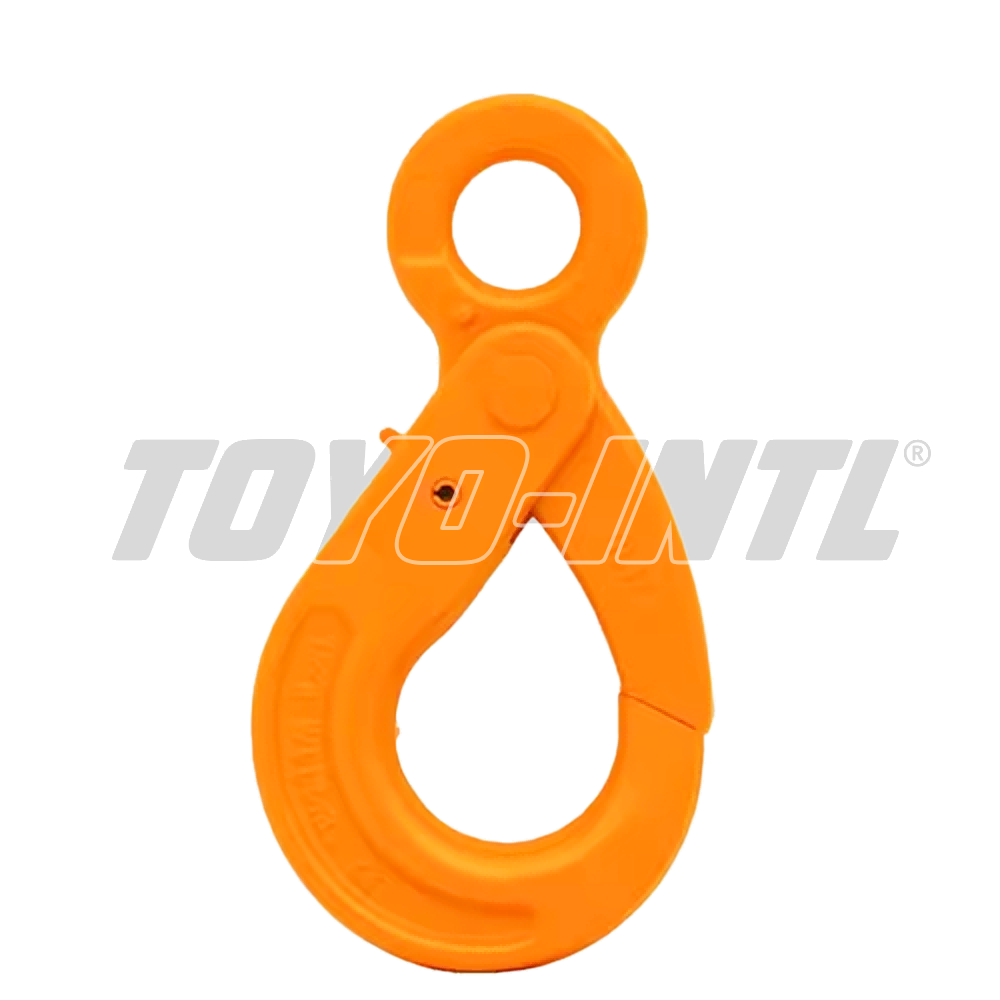

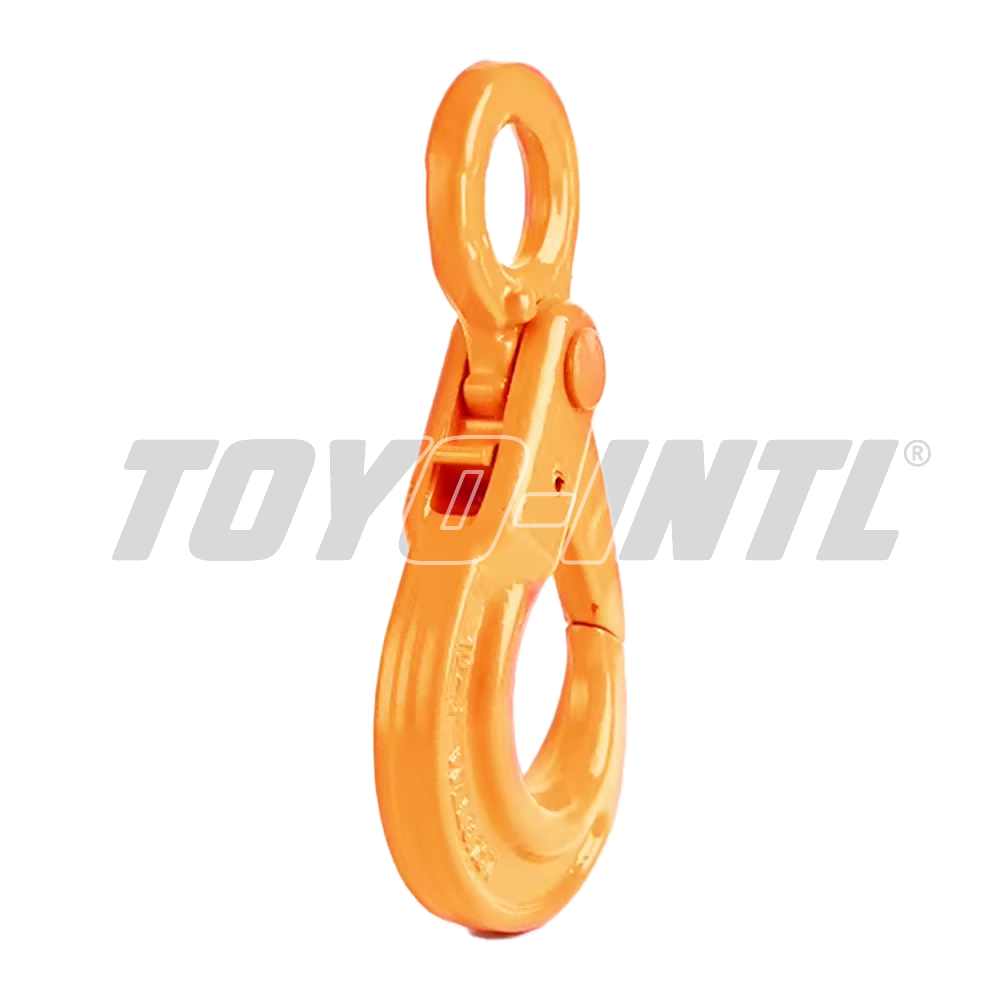

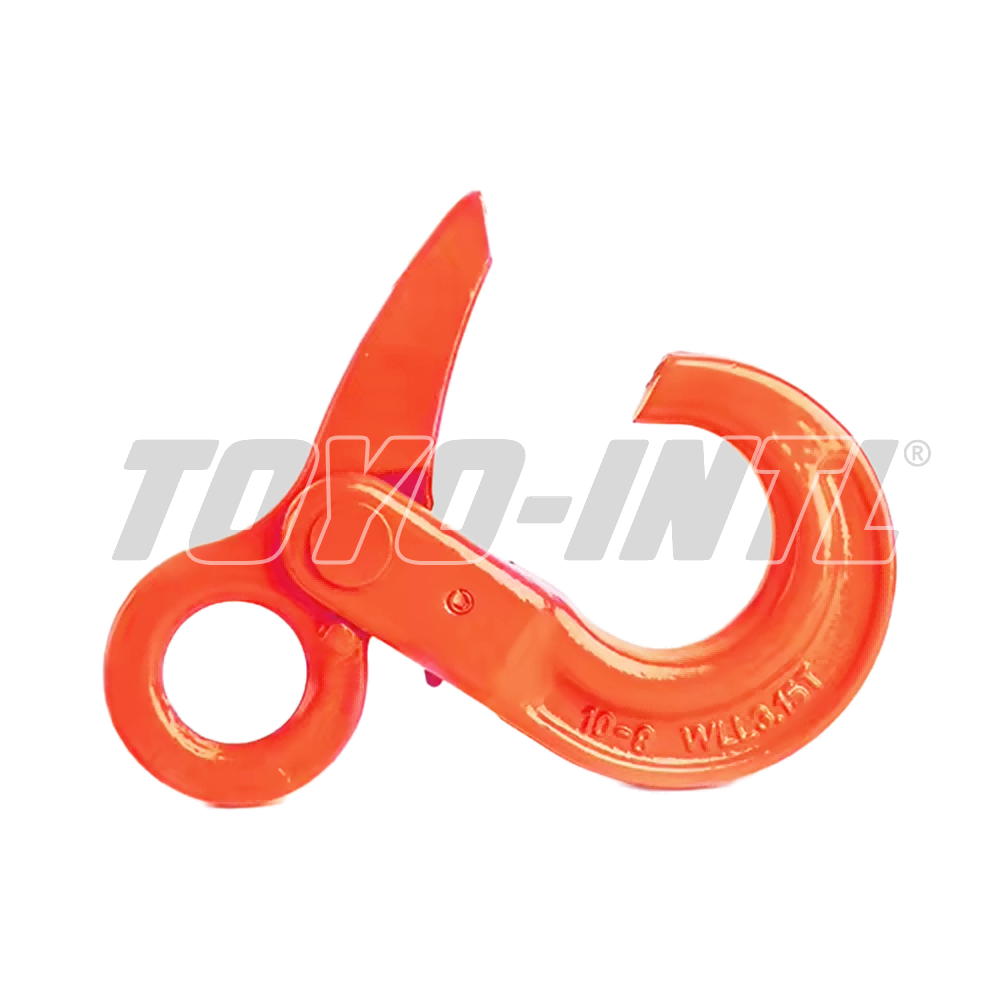

  • The product is labeled Eye Safety Hook.
  • The sheet identifies it as an Alloy Eye Safety Hook Grade 80 Type HSE.
  • Size options run from 6 to 22 mm.
  • WLL 4:1 values run from 1.2 to 15.0 t.
  • The eye connection and safety-hook form are shown in the illustration.
  • Listed weights run from 0.5 to 13.4 kg.
  • Complete semantic specifications; pure schematic letter dimensions removed:
0086-022-59892153 Copied!
+86 177 2540 7738 Copied!
sales@toyohoisting.com Copied!
share:
Share on facebook
Share on twitter
Share on linkedin
Share on whatsapp

Product Details

Technical Specifications

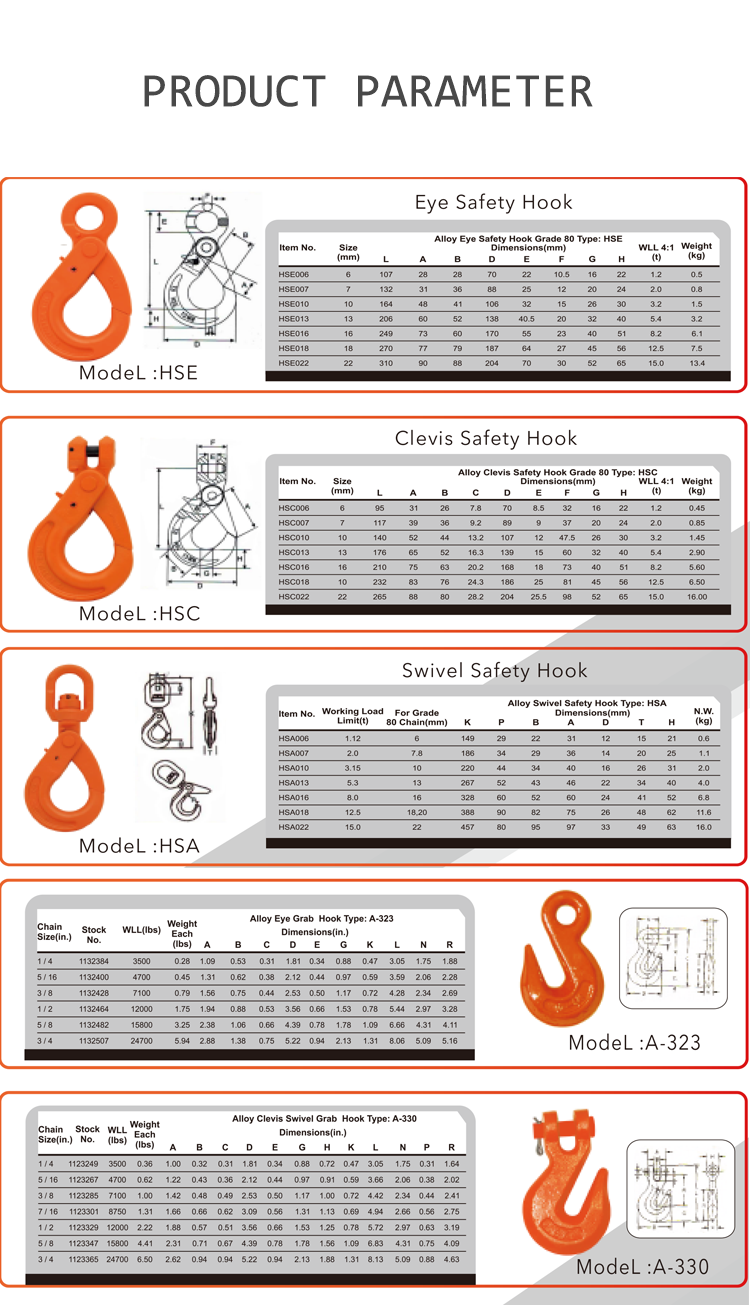

Item no. Size (mm) WLL 4:1 (t) Weight (kg)
HSE006 6 1.2 0.5
HSE007 7 2.0 0.8
HSE010 10 3.2 1.5
HSE013 13 5.4 3.2
HSE016 16 8.2 6.1
HSE018 18 12.5 7.5
HSE022 22 15.0 13.4

Features & Benefits
