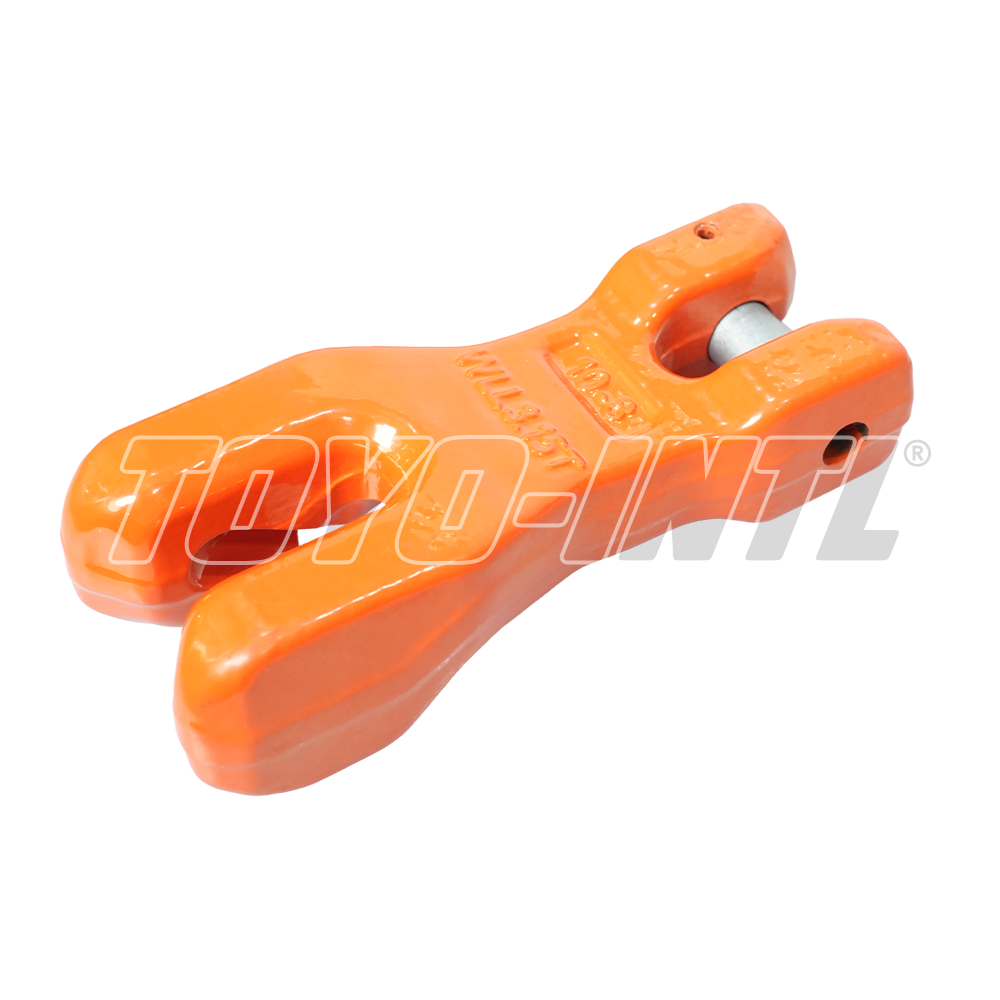

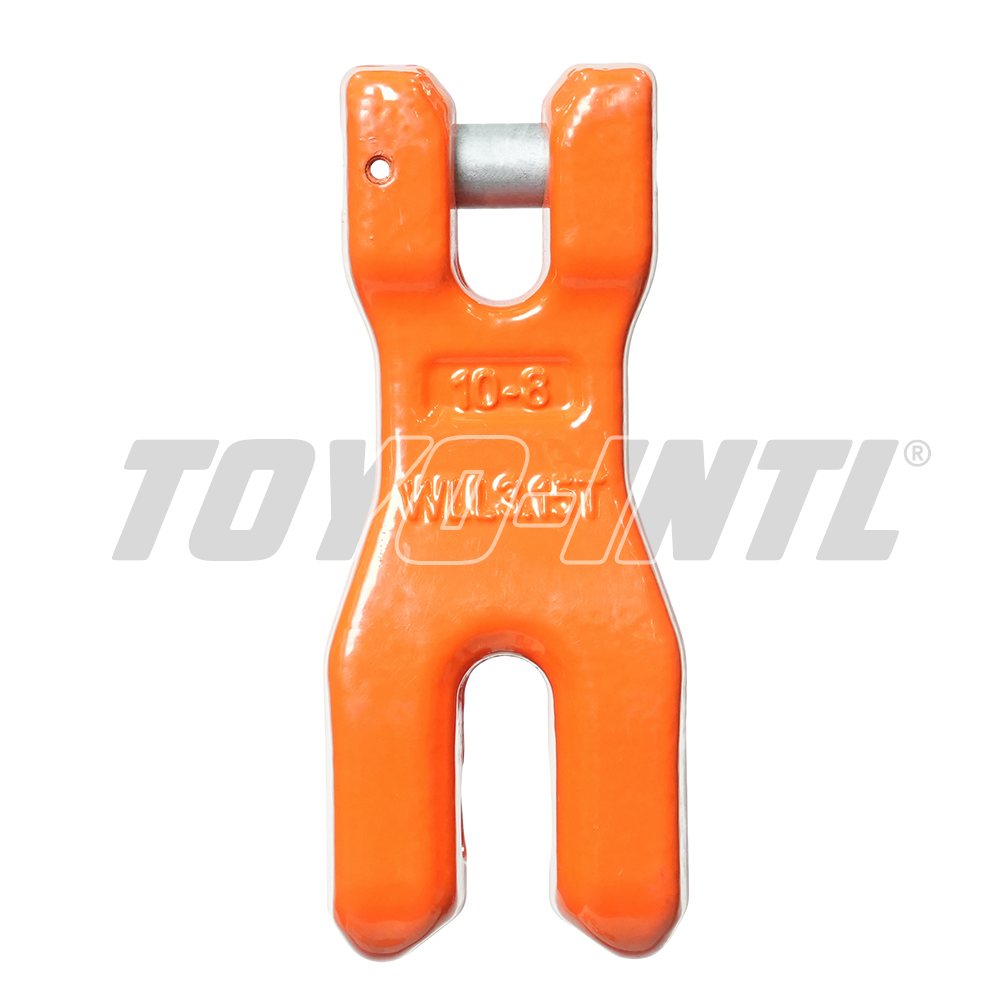

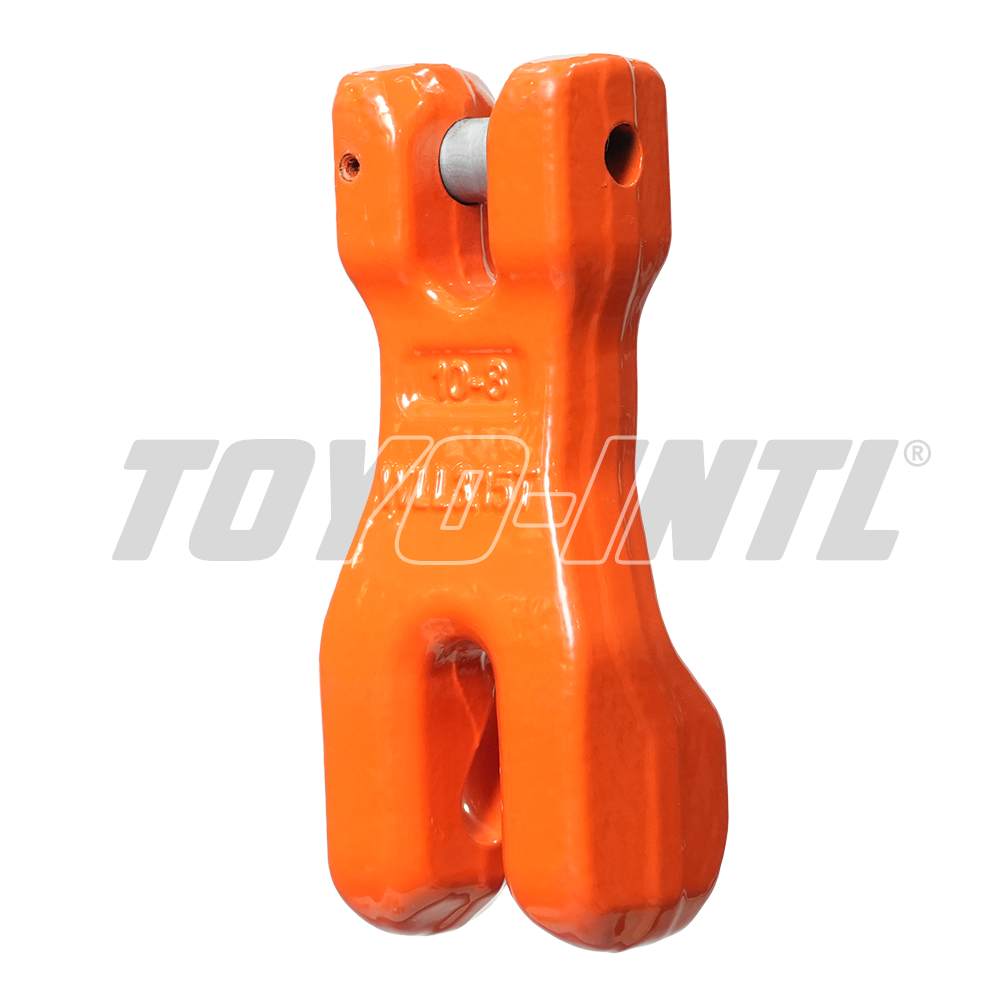

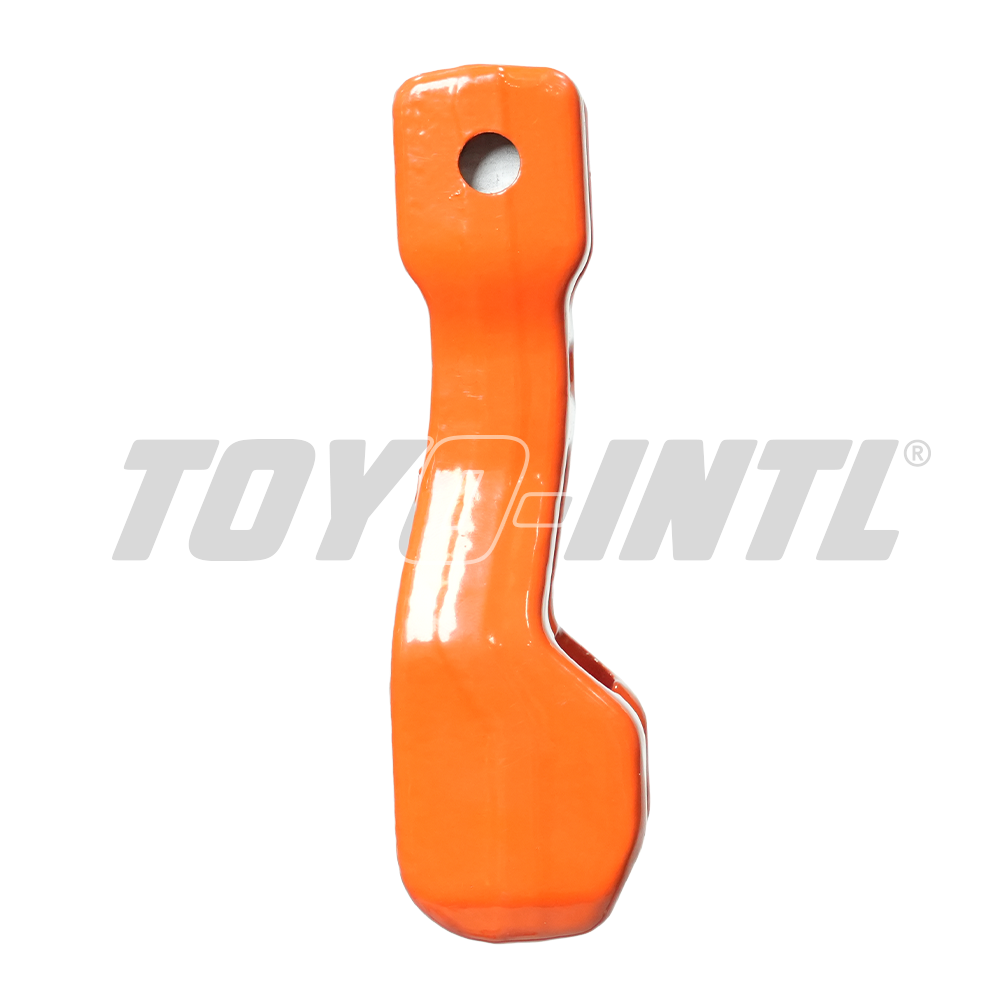

TOYO-INTL G80 Chain Shortener Clutch for Lifting Chain Sling

Categories: RIGGING HARDWARE

Why Choose TOYO-INTL

Product Description:

  • Forged super-alloy-steel construction.
  • Each unit is tested at 2.5 times the Working Load Limit.
  • 100% magnaflux crack detection is specified.
  • A sampling break test is performed for each lot.
  • Fatigue testing is specified at 1.5 times WLL for 20,000 cycles.
  • Pins receive 100% eddy-current flaw detection.
  • The product is suitable for EN818-2 G80 chain.
0086-022-59892153 Copied!
+86 177 2540 7738 Copied!
sales@toyohoisting.com Copied!
share:
Share on facebook
Share on twitter
Share on linkedin
Share on whatsapp

Product Details

Technical Specifications

Item no. Size W.L.L. (t) Weight (kg)
CAW06 6 1.12 0.17
CAW08 7/8 2 0.4
CAW10 10 3.15 0.97
CAW13 13 5.3 1.85
CAW16 16 8 3.68
CAW20 20 12.5 4.43
CAW22 22 15 8.5
CAW26 26 21.2 15

Features & Benefits

Model size WLL wt
CAW06 6 1.12t 0.17kg
CAW08 7/8 2t 0.40kg
CAW10 10 3.15t 0.97kg
CAW13 13 5.3t 1.85kg
CAW16 16 8t 3.68kg
CAW20 20 12.5t 4.43kg
CAW22 22 15t 6.5kg
CAW26 26 21.2t 15kg
