RIGGING HARDWARE

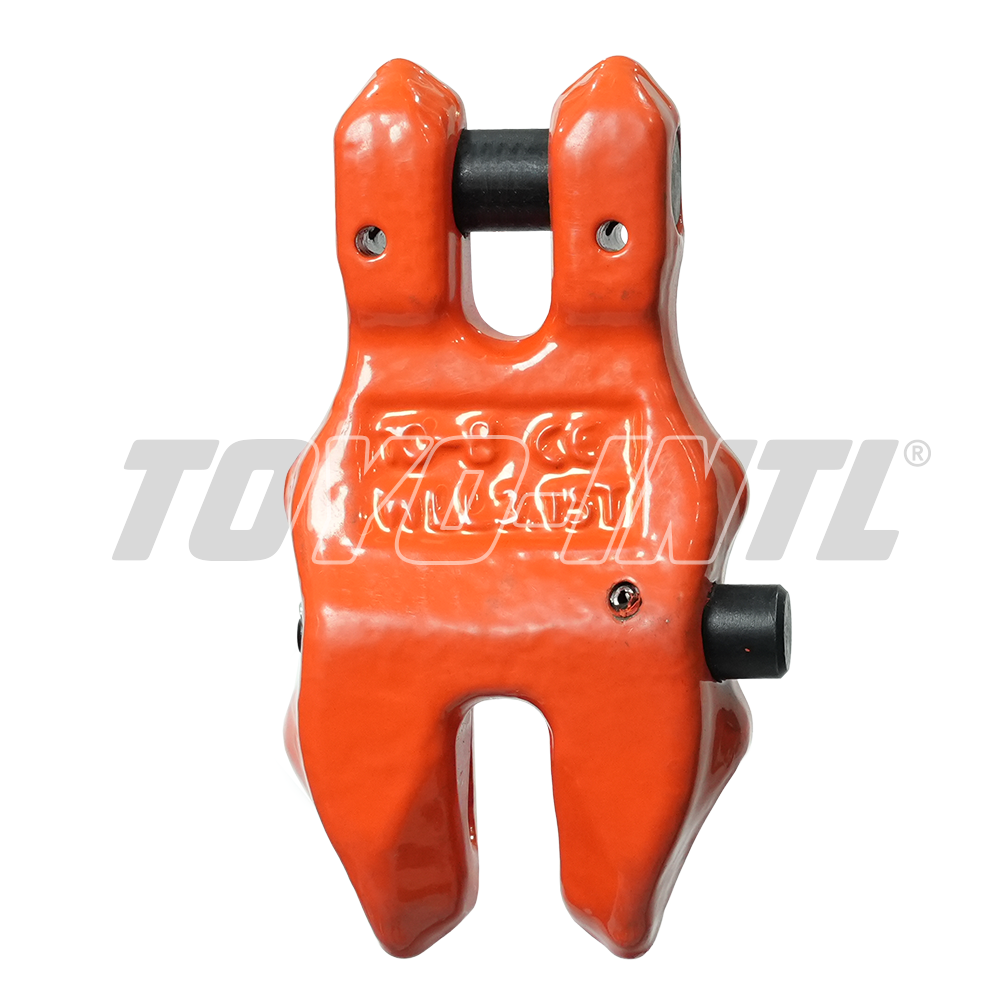

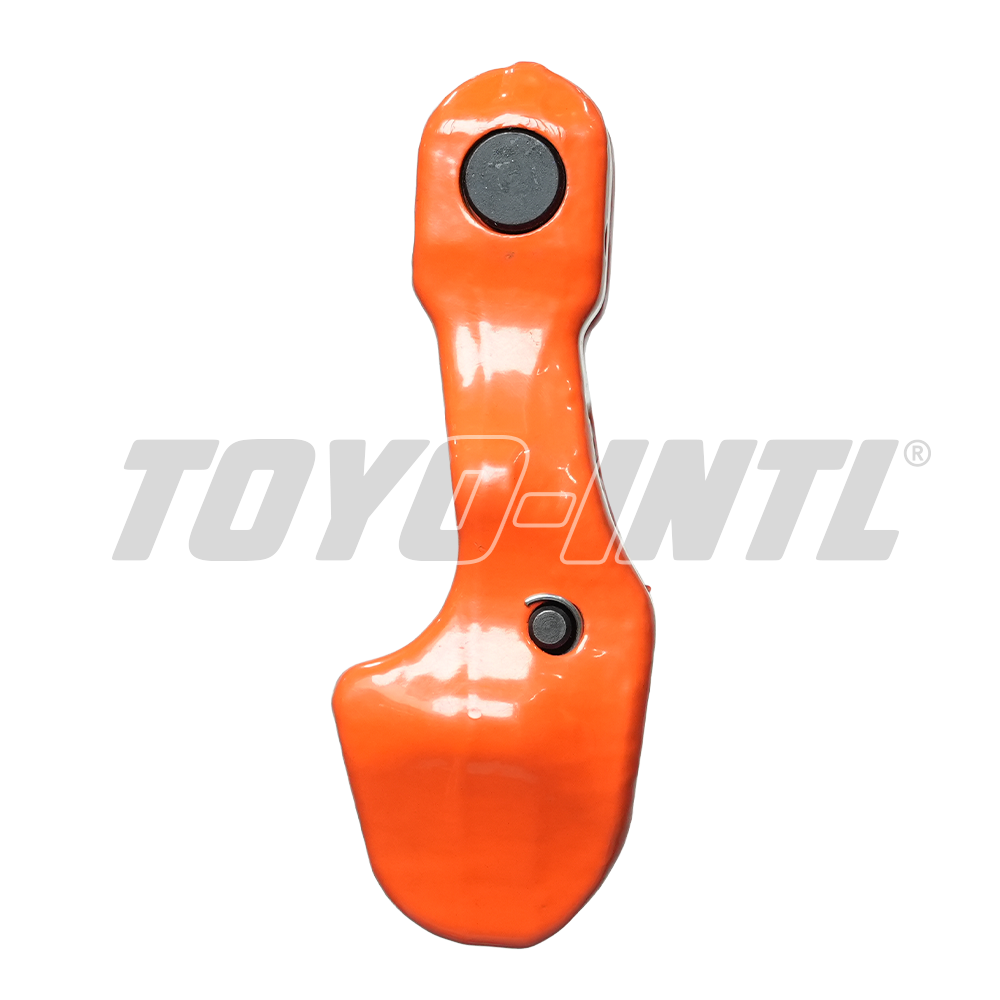

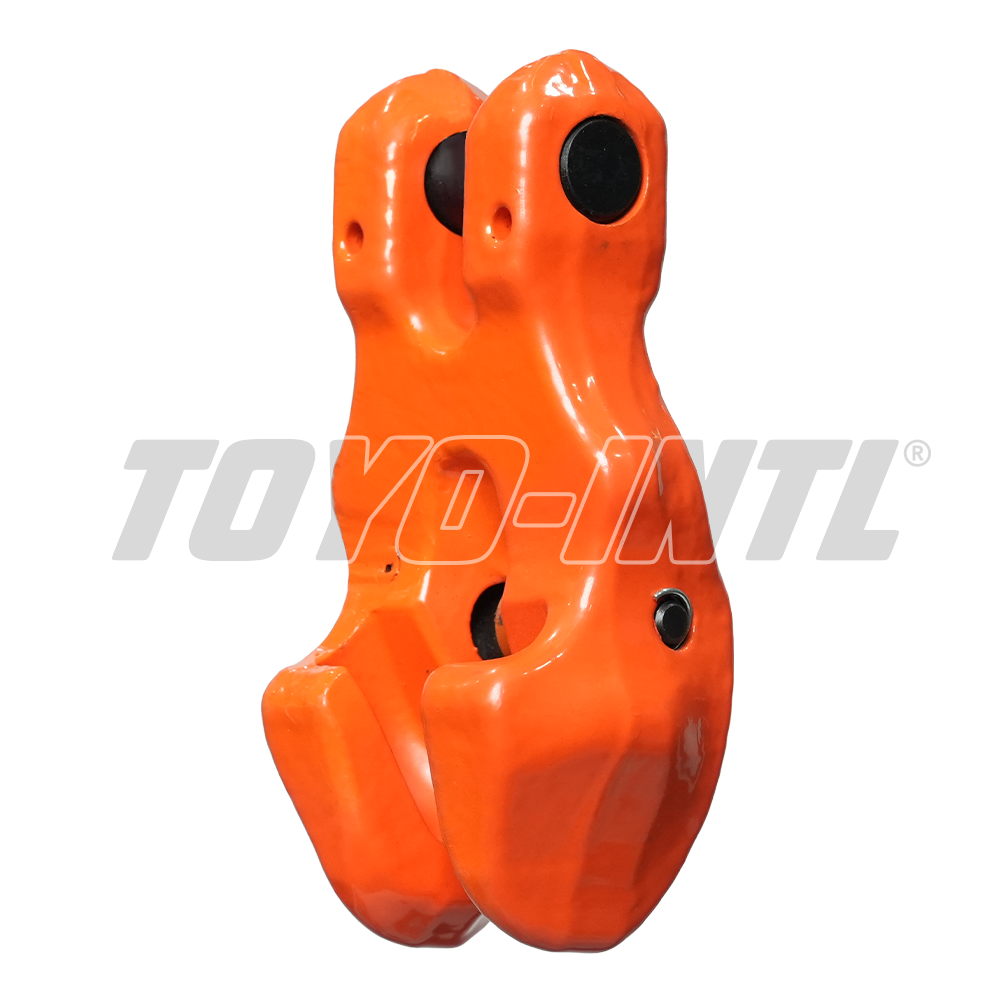

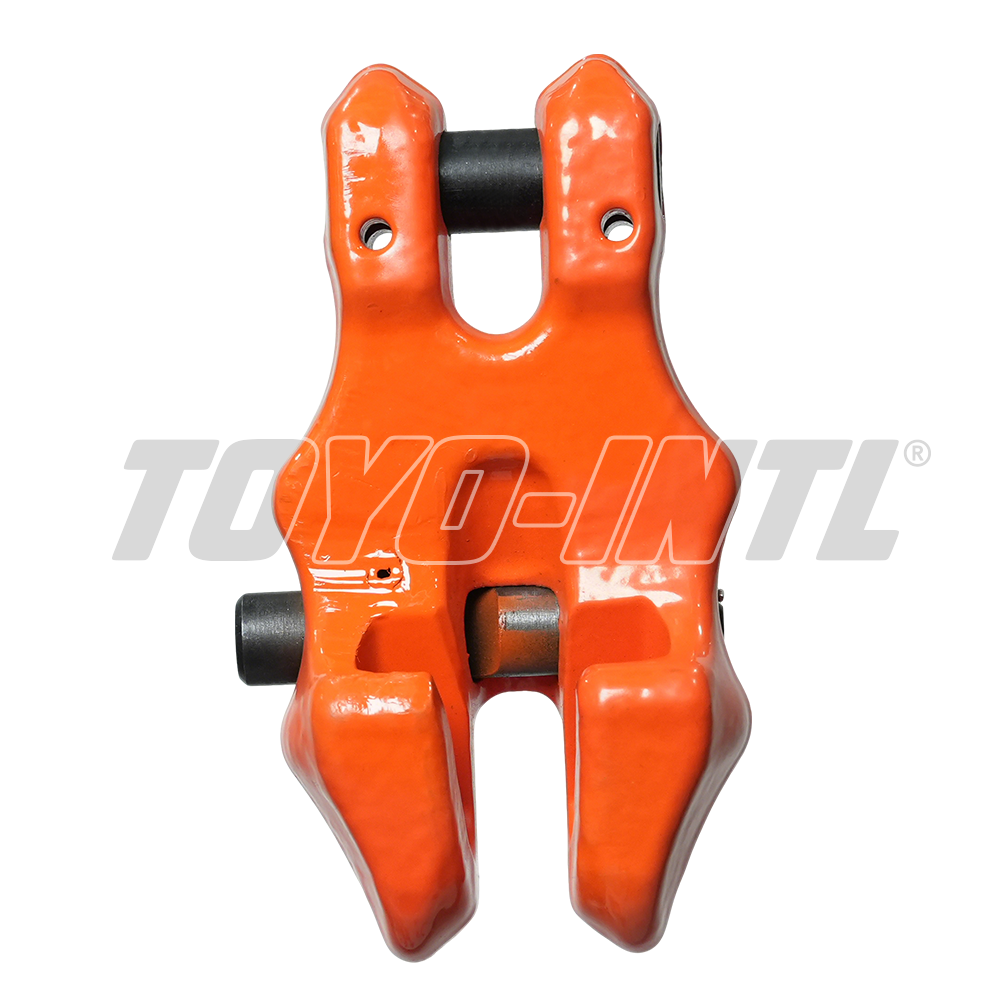

TOYO-INTL G80 Chain Shortener Clutch with Safety Pin for Chain Sling

Categories: RIGGING HARDWARE

Why Choose TOYO-INTL

Product Description:

  • Forged super-alloy-steel construction.
  • The design includes a safety pin.
  • Each unit is tested at 2.5 times the Working Load Limit.
  • 100% magnaflux crack detection is specified.
  • A sampling break test is performed for each lot.
  • Fatigue testing is specified at 1.5 times WLL for 20,000 cycles.
  • Pins receive 100% eddy-current flaw detection.
  • The product is suitable for EN818-2 G80 chain.
0086-022-59892153 Copied!
+86 177 2540 7738 Copied!
sales@toyohoisting.com Copied!
share:
Share on facebook
Share on twitter
Share on linkedin
Share on whatsapp

Product Details

Technical Specifications

Item no. Size W.L.L. (t) Weight (kg)
CAW-P06 6 1.12 0.28
CAW-P08 7/8 2 0.40
CAW-P10 10 3.15 0.90
CAW-P13 13 5.3 2.2
CAW-P16 16 8 4.0

Features & Benefits

Model size WLL wt
CAW-P06 6 1.12t 0.28kg
CAW-P08 7/8 2t 0.40kg
CAW-P10 10 3.15t 0.90kg
CAW-P13 13 5.3t 2.2kg
CAW-P16 16 8t 4.0kg
