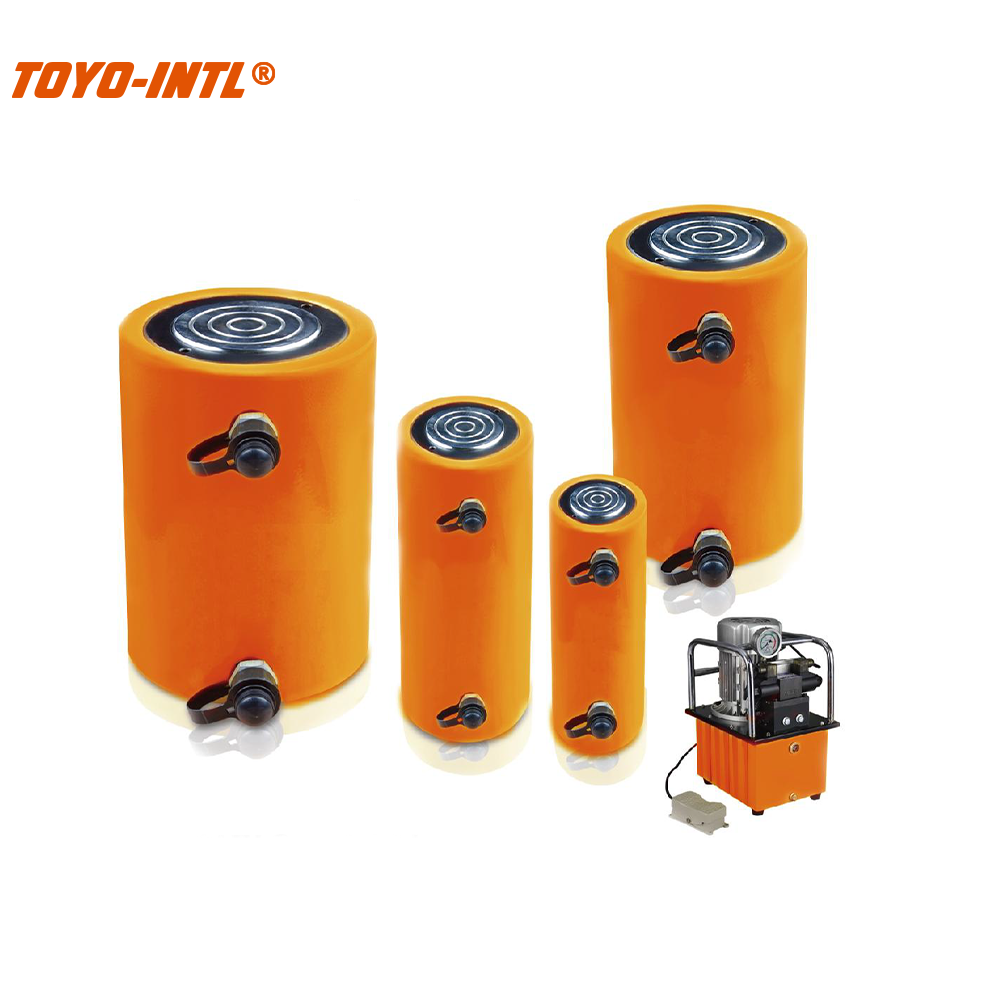

TOYO-INTL PR Double-acting Hydraulic Cylinder

Categories: LIFTING JACK

Why Choose TOYO-INTL

The PR Double-acting Hydraulic Cylinder is designed for controlled lifting during equipment service, installation and maintenance.
The lifting mechanism supports steady raising and controlled lowering of the load.
A steel body and stable support base help maintain alignment during operation.
The compact format is practical for workshops, vehicles and field maintenance.
Position the jack on a firm, level surface before lifting.
Use suitable stands or supports whenever the load must remain raised.
Hydraulic actuation supports smooth lifting and controlled lowering.

0086-022-59892153 Copied!

+86 177 2540 7738 Copied!

sales@toyohoisting.com Copied!

Model	Tonnage (T)	Stroke (mm)	Oil capacity (cm³)	Closed height A (mm)	Extended Height B (mm)	Outside Dia. (mm)	Inside Dia. E (mm)	Piston Dia. F (mm)	G.W. (Kg)
PR-10250	10	250	491	380	630	70	45	36	10
PR-10300	10	300	589	430	730	70	45	36	11
PR-20250	20	250	707	390	640	80	60	45	13
PR-20300	20	300	848	440	740	80	60	45	15
PR-30200	30	200	884	364	564	95	75	65	17
PR-30300	30	300	1325	464	764	95	75	65	21
PR-50200	50	200	1418	374	574	120	95	70	29
PR-50300	50	300	2126	474	774	120	95	70	35
PR-100200	100	200	2863	389	589	175	135	90	60
PR-100300	100	300	4294	489	789	175	135	90	73
PR-20050	200	50	1418	217	267	228	190	135	63
PR-200150	200	150	4253	317	467	228	190	135	84
PR-200300	200	300	8506	467	767	228	190	135	146
PR-25050	250	50	1815	261	311	270	215	180	102
PR-250150	250	150	5446	361	511	270	215	180	135
PR-250300	250	300	10892	511	811	270	215	180	184
PR-30050	300	50	2262	280	330	285	240	200	133
PR-300150	300	150	6786	380	530	285	240	200	173
PR-300300	300	300	13572	530	830	285	240	200	231
PR-40050	400	50	2863	341	391	325	270	220	211
PR-400150	400	150	8588	441	591	325	270	220	262
PR-400300	400	300	17177	591	891	325	270	220	336
PR-50050	500	50	3653	376	426	372	305	250	309
PR-500150	500	150	10959	476	626	372	305	250	360
PR-500300	500	300	21918	626	926	372	305	250	460
PR-60050	600	50	4276	397	447	402	330	270	381
PR-600150	600	150	12829	497	647	402	330	270	458
PR-600300	600	300	25659	647	947	402	330	270	575
PR-80050	800	50	5973	438	488	472	390	320	583
PR-800150	800	150	17919	538	688	472	390	320	681
PR-800300	800	300	35838	688	988	472	390	320	850
PR-100050	1000	50	7261	493	543	650	450	360	830
PR-1000150	1000	200	21783	620	820	650	450	360	970
PR-1000300	1000	300	43566	720	1020	650	450	360	1177
