TOYO-INTL A-330 Alloy Clevis Swivel Grab Hook

Categories: HOOK & LINK

Why Choose TOYO-INTL

Product Description:

  • Alloy clevis swivel grab hook type A-330 is printed on the product sheet.
  • Chain-size options run from 1/4 to 3/4 in., including a 7/16 in. row.
  • WLL options run from 3,500 to 24,700 lb.
  • Per-piece weight is listed from 0.36 to 6.50 lb.
  • Seven stock-number rows are provided, from 1123249 to 1123365.
  • The retained E, G, H, K, L, N, P, and R dimensions are printed in inches.
  • Complete semantic specifications; pure schematic letter dimensions removed:
0086-022-59892153 Copied!
+86 177 2540 7738 Copied!
sales@toyohoisting.com Copied!
share:
Share on facebook
Share on twitter
Share on linkedin
Share on whatsapp

Product Details

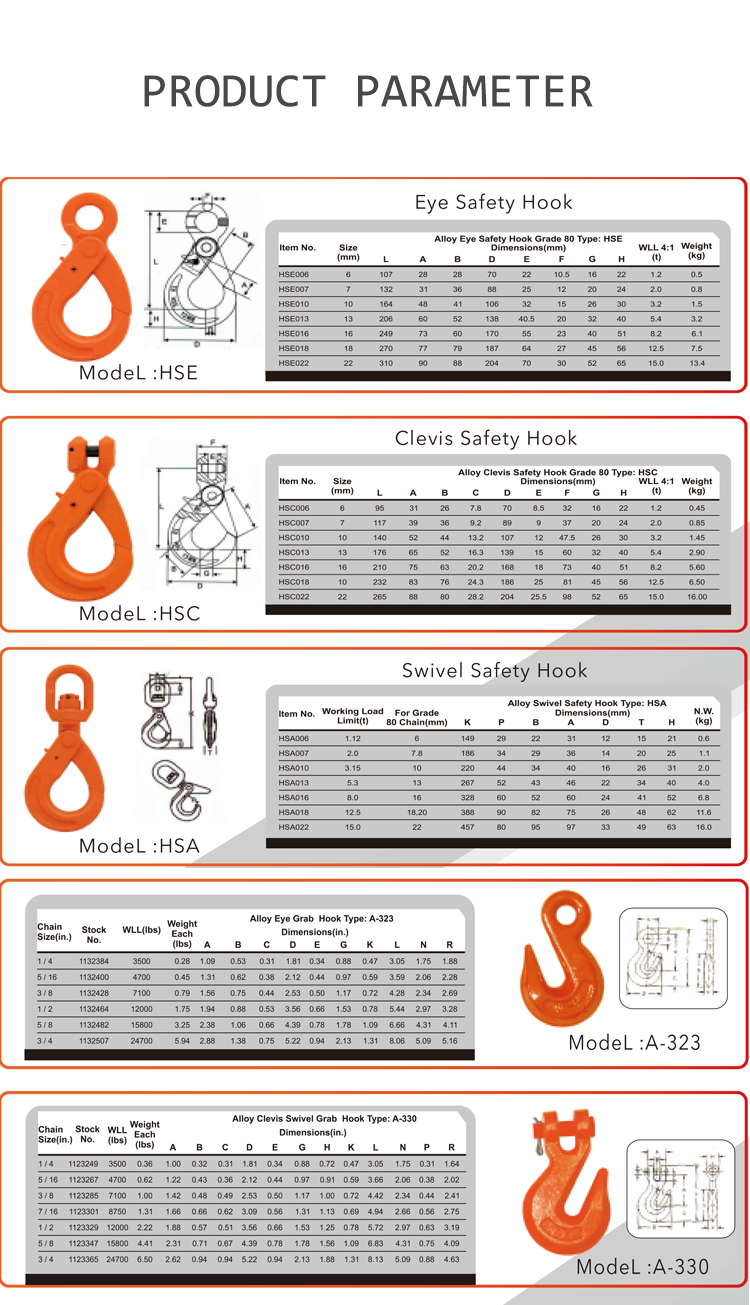

Technical Specifications

Stock no. Chain size (in.) WLL (lb) Weight each (lb)
1123249 1/4 3,500 0.36
1123267 5/16 4,700 0.62
1123285 3/8 7,100 1.00
1123301 7/16 8,750 1.31
1123329 1/2 12,000 2.22
1123347 5/8 15,800 4.41
1123365 3/4 24,700 6.50
