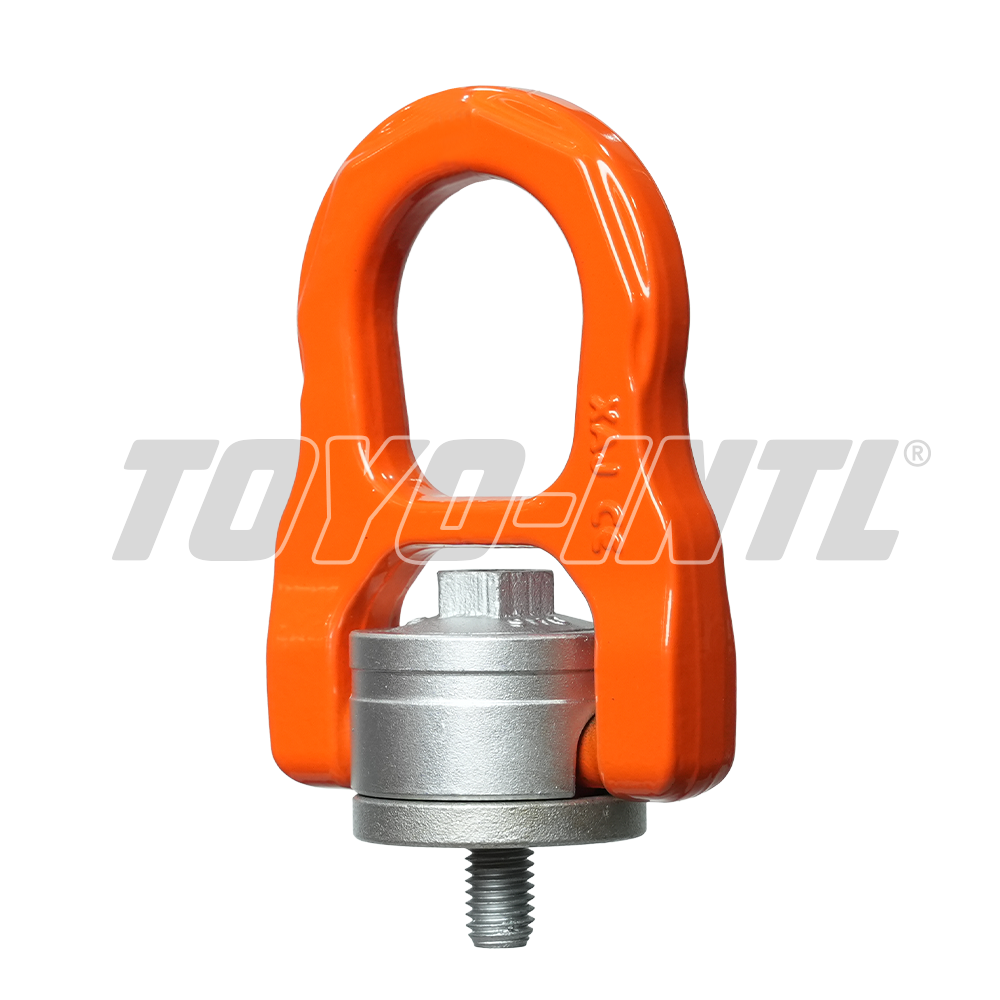

TOYO-INTL G80 Low Profile Swivel Hoist Ring with Metric Thread

Categories: HOOK & LINK

Why Choose TOYO-INTL

Product Description:

The heavy-duty hoist ring is specified with a 4:1 safety factor.
It uses high-quality alloy steel and professional forging technology.
The source states that the production process and raw materials are traceable.
The ring is designed for easy installation.
The bolt has an anti-corrosion design for use in more conditions.
The source specifies DIN EN 1677-1 and bolt grade 10.9.
Specifications are presented as complete for customized needs.
Each product is inspected with a 6g go/no-go gauge.

0086-022-59892153 Copied!

+86 177 2540 7738 Copied!

sales@toyohoisting.com Copied!

share:

Product Details

Technical Specifications

Parameters — metric thread (as printed; removed schematic columns: E, D, F, G, H, R, S, SW; A/B/C were already absent)

Item	WLL/T	Thread	Locking torque/Nm	N.W./kg
HDH-M6	0.2	M6×1.0	10	0.3
HDH-M8	0.5	M8×1.25	10	0.3
HDH-M10	0.7	M10×1.5	10	0.3
HDH-M12	1	M12×1.75	15	0.35
HDH-M14	1.5	M14×2.0	30	1.15
HDH-M16	2	M16×2.0	50	1.2
HDH-M18	2.5	M18×2.5	70	2.6
HDH-M20	3	M20×2.5	100	2.65
HDH-M22	4	M22×2.5	100	2.7
HDH-M24	5	M24×3.0	160	2.75
HDH-M27	5.6	M27×3.0	200	5.45
HDH-M30	7.8	M30×3.5	500	5.8
HDH-M33	8.3	M33×3.5	500	5.7
HDH-M36S	9	M36×4.0	500	6
HDH-M36B	12.5	M36×4.0	600	11.5
HDH-M39	13.5	M39×4.0	600	11.7
HDH-M42	15.6	M42×4.5	600	11.8
HDH-M45	17.5	M45×4.5	600	11.9
HDH-M48	20	M48×5.0	600	12.1
HDH-M52	20	M52×5.0	800	15.5
HDH-M56	22	M56×5.5	800	15.9
HDH-M60	22	M60×5.5	800	16.2
HDH-M64	22.5	M64×6.0	800	16.7

Parameters — UNC thread (as printed; removed schematic columns: E, D, F, G, H, R, S, SW; A/B/C were already absent)

Item	WLL/T	Thread	TPI	Locking torque/Nm	N.W./kg
HDH-5/16	0.5	5/16	18	15	0.3
HDH-3/8	0.6	3/8	16	15	0.3
HDH-1/2	1	1/2	13	15	0.33
HDH-5/8	2	5/8	11	30	1.2
HDH-3/4	3	3/4	10	80	2.6
HDH-7/8	4	7/8	9	90	2.65
HDH-1	5	1	8	110	2.75
HDH-1-1/4	8	1-1/4	7	200	5.55
HDH-1-1/2	12.5	1-1/2	6	500	11.3
HDH-1-3/4	16	1-3/4	5	500	12.2
HDH-2	20	2	4.5	600	13.2
HDH-2-1/4	22	2-1/4	4.5	800	15.8
HDH-2-1/2	22.5	2-1/2	4	800	16.5

Features & Benefits

ITEM NO.	Working Load WLL/T	Thread M	E	A	B	C	D	F	G	H	R	S	SW	Locking Torque / Nm	N.W Kg
HDH-M6	0.2	M6×1.0	12	33	58	36	10	84	30	10	15.5	6	13	10	0.3
HDH-M8	0.5	M8×1.25	12	33	58	36	10	84	30	10	15.5	6	13	10	0.3
HDH-M10	0.7	M10×1.5	15	33	58	36	10	84	30	10	15.5	6	13	10	0.3
HDH-M12	1	M12×1.75	20	33	58	36	10	84	30	10	15.5	6	13	15	0.35
HDH-M14	1.5	M14×2.0	21	50	90	50	15	126	44.5	18	22	8	19	30	1.15
HDH-M16	2	M16×2.0	24	50	90	50	15	126	44.5	18	22	8	19	50	1.2
HDH-M18	2.5	M18×2.5	26	65	117	66	22	163	58	21	29.5	10	27	70	2.6
HDH-M20	3	M20×2.5	30	65	117	66	22	163	58	21	29.5	10	27	100	2.65
HDH-M22	4	M22×2.5	33	65	117	66	22	163	58	21	29.5	10	27	100	2.7
HDH-M24	5	M24×3.0	36	65	117	66	22	163	58	21	29.5	10	27	160	2.75
HDH-M27	5.6	M27×3.0	38	87	147	80	26.5	206	76.5	28	35.5	14	34	200	5.45
HDH-M30	7.8	M30×3.5	48	87	147	80	26.5	206	76.5	28	35.5	14	34	500	5.8
HDH-M33	8.3	M33×3.5	48	87	147	80	26.5	206	76.5	28	35.5	14	34	500	5.7
HDH-M36S	9	M36×4.0	54	87	147	80	26.5	206	76.5	28	35.5	14	34	500	6
HDH-M36B	12.5	M36×4.0	56	110	186	100	33	256	96.5	36	44	19	46	600	11.5
HDH-M39	13.8	M39×4.0	56	110	186	100	33	256	96.5	36	44	19	46	600	11.7
HDH-M42	15.6	M42×4.5	63	110	186	100	33	256	96.5	36	44	19	46	600	11.8
HDH-M45	17.5	M45×4.5	63	110	186	100	33	256	96.5	36	44	19	46	600	11.9
HDH-M48	20	M48×5.0	72	110	186	100	33	256	96.5	36	44	19	46	600	12.1
HDH-M52	20	M52×5.0	72	123	200	110	35	279	107	36	48.5	22	55	800	15.5
HDH-M56	22	M56×5.5	84	123	200	110	35	279	107	36	48.5	22	55	800	15.9
HDH-M60	22	M60×5.5	84	123	200	110	35	279	107	36	48.5	22	55	800	16.2
HDH-M64	22.5	M64×6.0	100	123	200	110	35	279	107	36	48.5	22	55	800	16.7
