TOYO-INTL Swivel Hook With Latch

Categories: HOOK & LINK

Why Choose TOYO-INTL

Product Description:

  • The product is labeled Swivel Hook With Latch.
  • Size rows cover 6 to 32 mm.
  • WLL values run from 1.12 to 31.5 T.
  • A swivel body and latch are visibly shown in the illustration.
  • The retained E, H, K, L, and M dimensions are printed in mm.
  • Listed weights run from 0.40 to 32.00 kg.
  • Complete semantic specifications; pure schematic letter dimensions removed:
0086-022-59892153 Copied!
+86 177 2540 7738 Copied!
sales@toyohoisting.com Copied!
share:
Share on facebook
Share on twitter
Share on linkedin
Share on whatsapp

Product Details

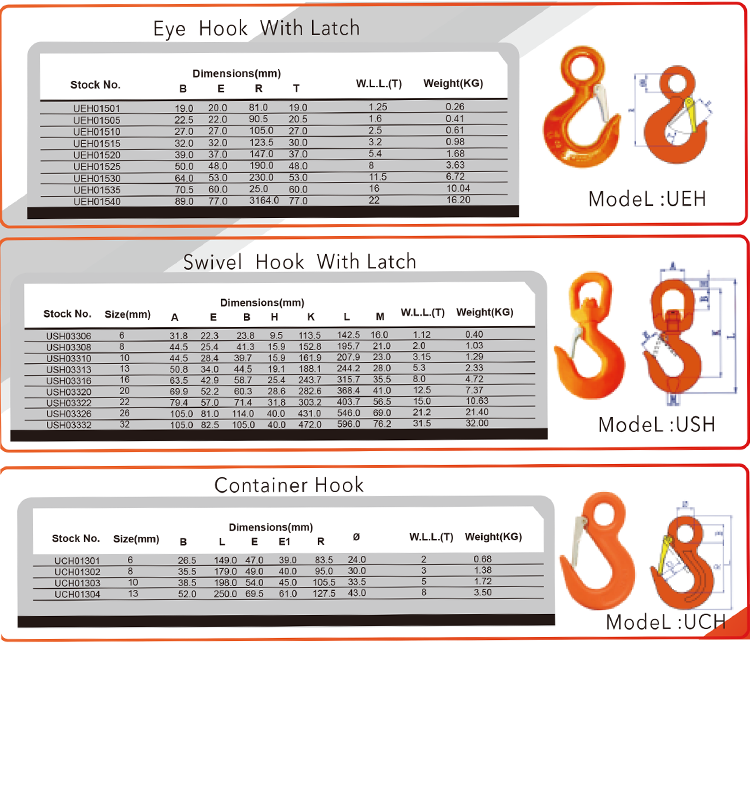

Technical Specifications

Stock no. Size (mm) WLL (T) Weight (kg)
USH006 6 1.12 0.40
USH008 8 2.0 1.03
USH010 10 3.15 1.29
USH013 13 5.3 2.33
USH016 16 8.0 4.72
USH020 20 12.5 7.37
USH022 22 15.0 10.63
USH026 26 21.2 21.40
USH032 32 31.5 32.00

Features & Benefits

svg>

svg>

svg>

svg>
