HOOK & LINK

TOYO-INTL MASTER LINK

Categories: HOOK & LINK

Why Choose TOYO-INTL

Product Description:

  • The master link assembly uses high-grade alloy steel.
  • The material is specified as quenched and tempered.
  • The design factor is 4:1 for chain.
  • The design factor is 5:1 for wire rope.
  • Each assembly is individually proof tested to 2.5 × WLL based on the 4:1 design factor unless otherwise specified.
  • The source states that certification is provided.

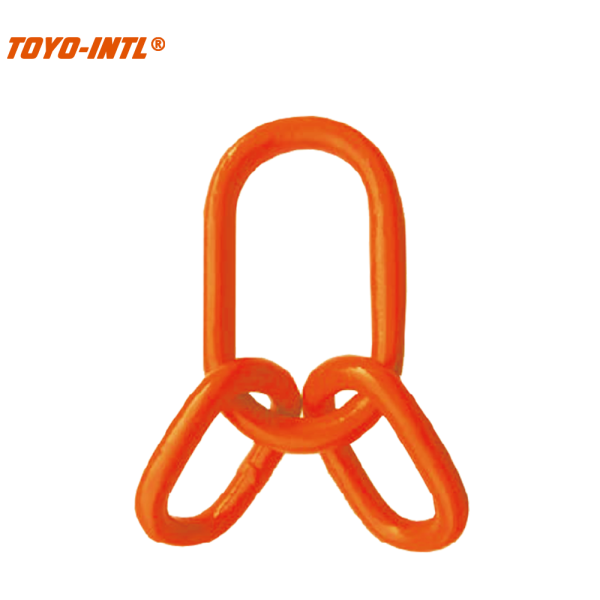

  • The table identifies an alloy grade 80 welded master link assembly.
0086-022-59892153 Copied!
+86 177 2540 7738 Copied!
sales@toyohoisting.com Copied!
share:
Share on facebook
Share on twitter
Share on linkedin
Share on whatsapp

Product Details

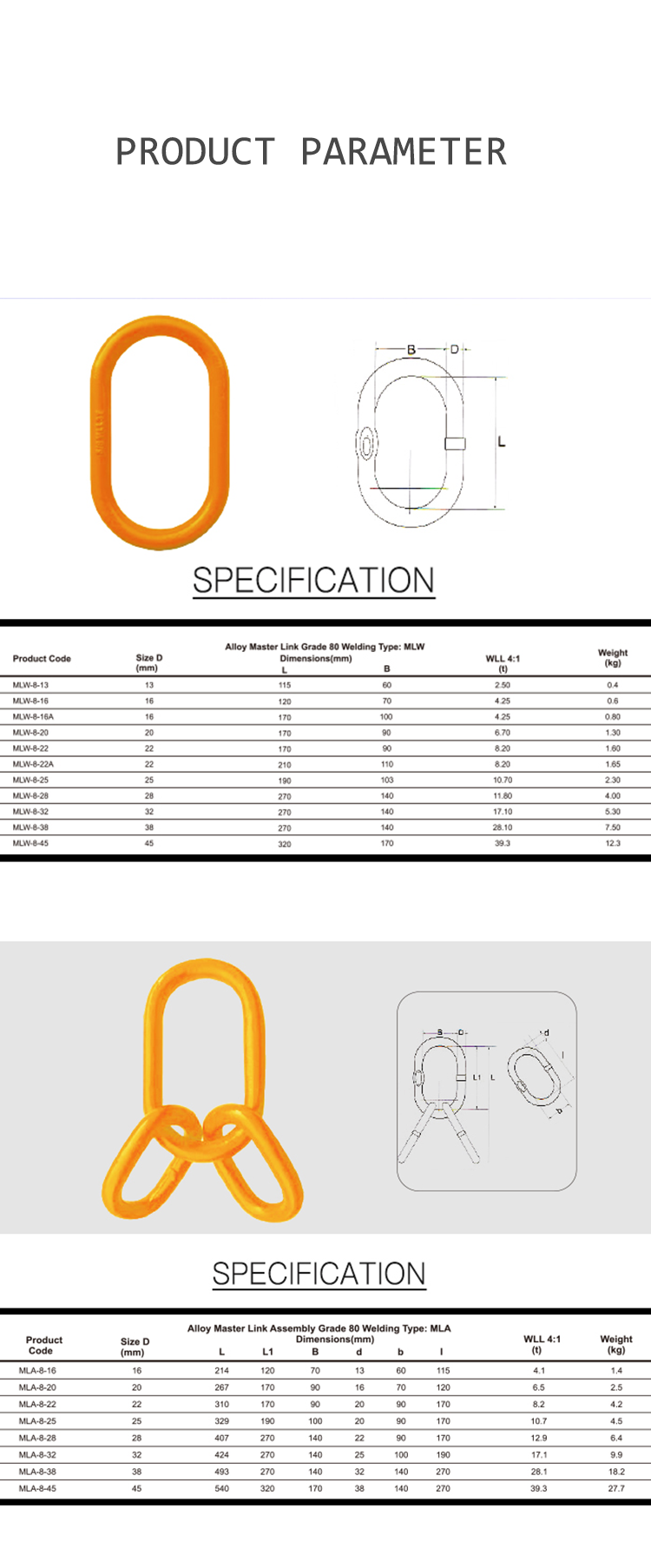

Technical Specifications

Product code Size D (inch) WLL 4:1/t Weight/kg
MLA-20 3/4" 4.7 1.67
MLA-22 7/8" 8 2.70
MLA-25 1" 11 4.10
MLA-28 1-1/8" 11.8 6.88
MLA-32 1-1/4" 16 7.00
MLA-38 1-1/2" 21.7 12.63
MLA-45 1-3/4" 28.4 17.50
MLA-51 2" 35 27.20
