HOOK & LINK

TOYO-INTL Clevis ALLOY STEEL SAFETY HOOK

Categories: HOOK & LINK

Why Choose TOYO-INTL

Product Description:

  • The product is labeled Clevis Safety Hook.
  • The sheet identifies it as an Alloy Clevis Safety Hook Grade 80 Type HSC.
  • Size options run from 6 to 22 mm.
  • WLL 4:1 values run from 1.2 to 15.0 t.
  • The clevis connection and pin are shown in the product illustration.
  • Listed weights run from 0.45 to 16.00 kg.
  • Complete semantic specifications; pure schematic letter dimensions removed:
0086-022-59892153 Copied!
+86 177 2540 7738 Copied!
sales@toyohoisting.com Copied!
share:
Share on facebook
Share on twitter
Share on linkedin
Share on whatsapp

Product Details

Technical Specifications

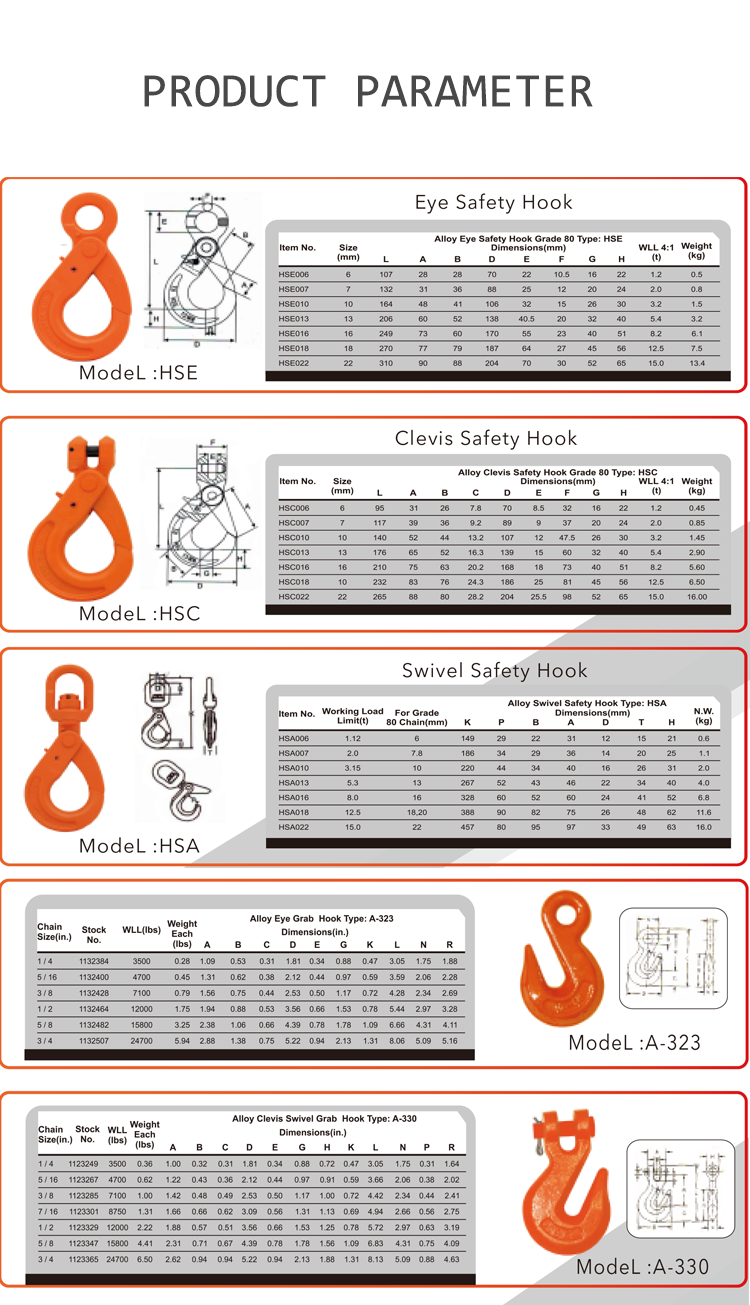

Item no. Size (mm) WLL 4:1 (t) Weight (kg)
HSC006 6 1.2 0.45
HSC007 7 2.0 0.85
HSC010 10 3.2 1.45
HSC013 13 5.4 2.90
HSC016 16 8.2 5.60
HSC018 18 12.5 6.50
HSC022 22 15.0 16.00
