HOOK & LINK

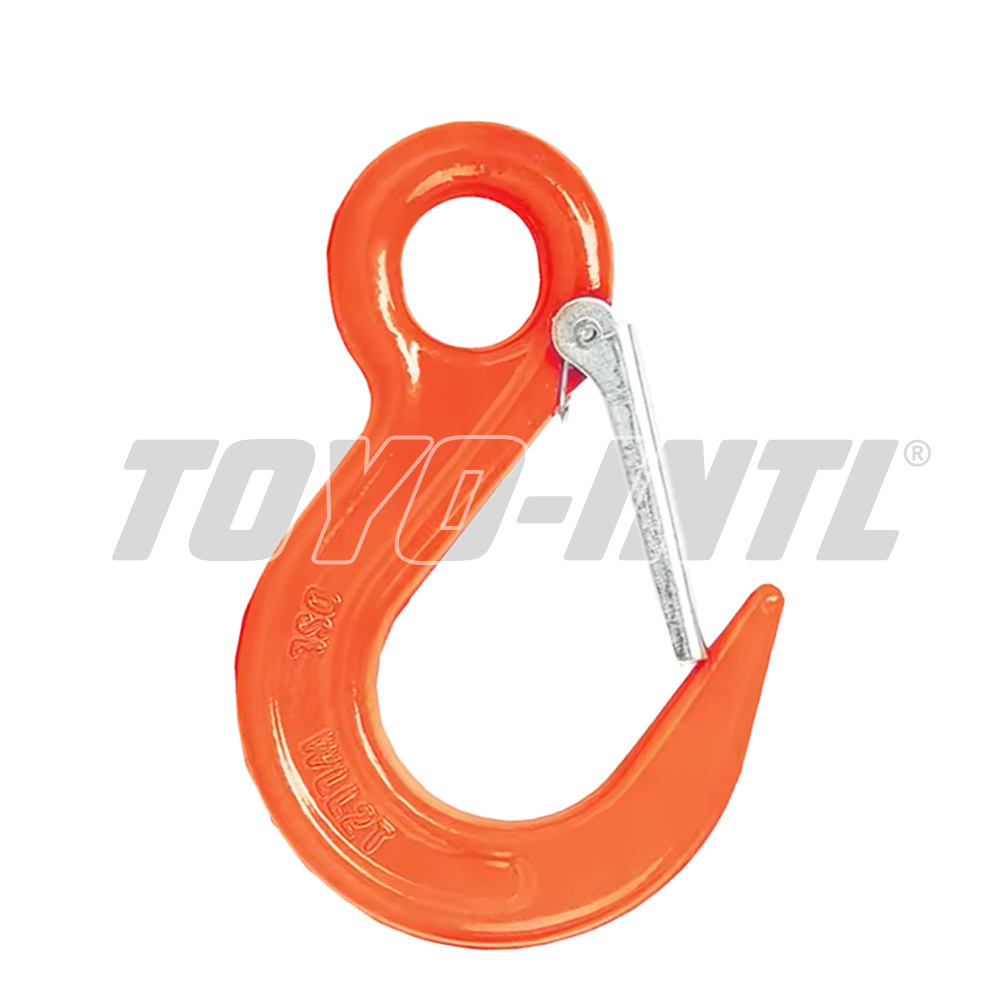

TOYO-INTL Container Hook

Categories: HOOK & LINK

Why Choose TOYO-INTL

Product Description:

  • The product is labeled Container Hook.
  • Size rows cover 6, 8, 10, and 13 mm.
  • WLL values run from 2 to 8 T.
  • A latch is visibly shown on the container-hook illustration.
  • Listed weights run from 0.68 to 3.50 kg.
  • The retained L, E, E1, R, and diameter dimensions are printed in mm.
  • Complete semantic specifications; pure schematic letter dimensions removed:
0086-022-59892153 Copied!
+86 177 2540 7738 Copied!
sales@toyohoisting.com Copied!
share:
Share on facebook
Share on twitter
Share on linkedin
Share on whatsapp

Product Details

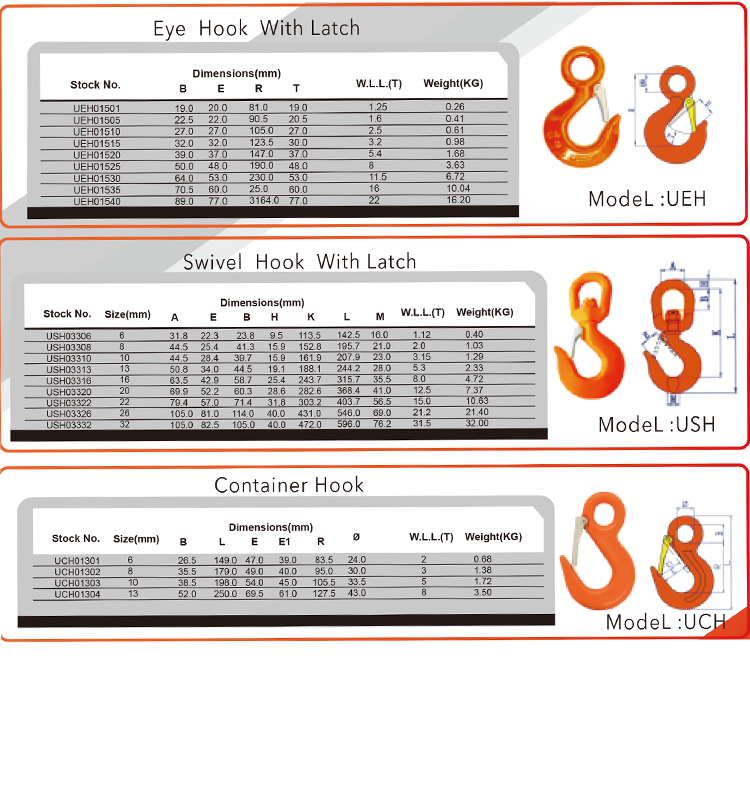

Technical Specifications

Stock no. Size (mm) Diameter (mm) WLL (T) Weight (kg)
UCH006 6 24.0 2 0.68
UCH008 8 30.0 3 1.38
UCH010 10 33.5 5 1.72
UCH013 13 43.0 8 3.50

Features & Benefits
