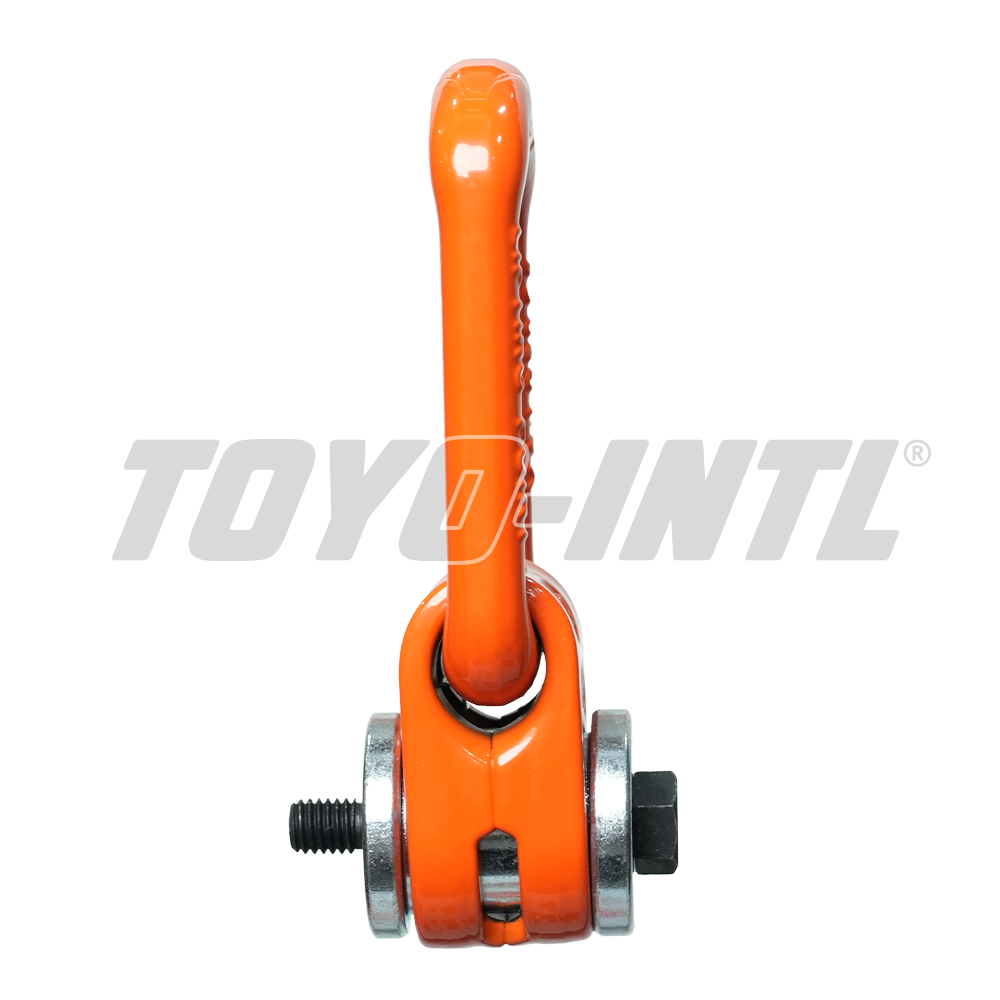

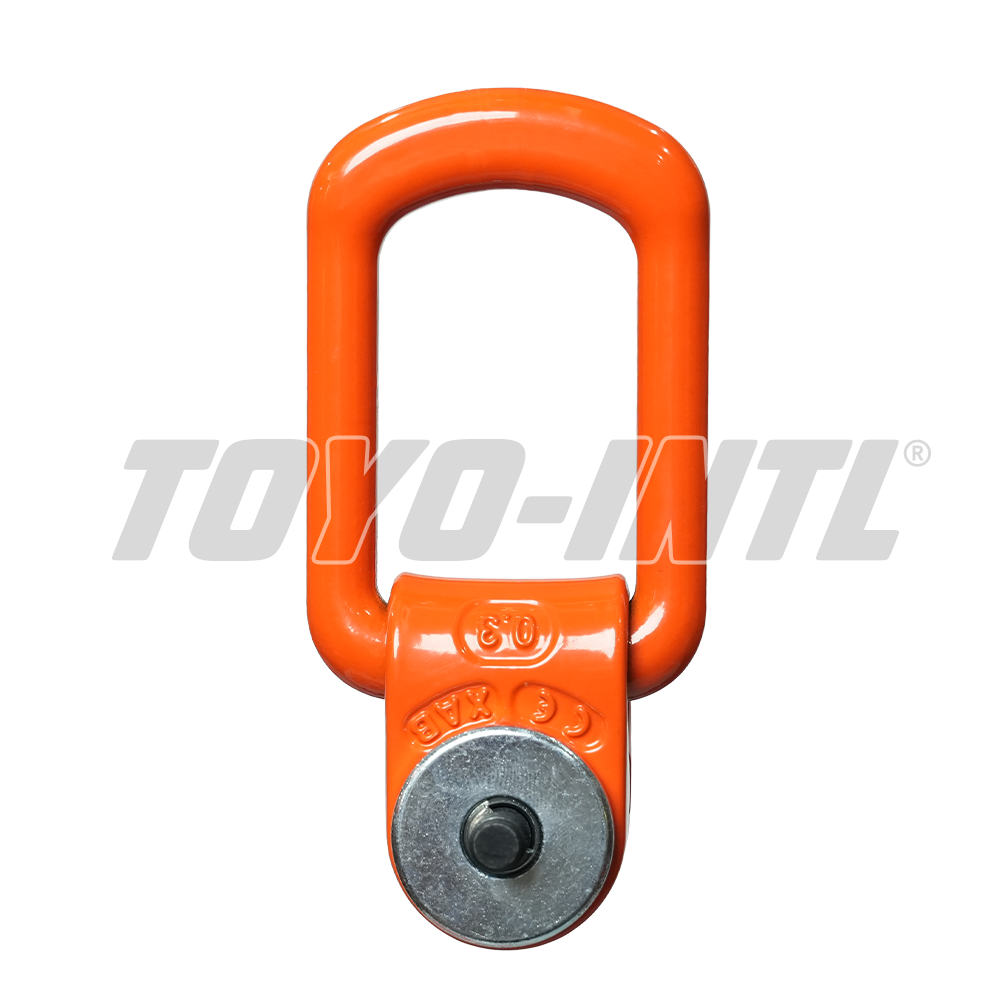

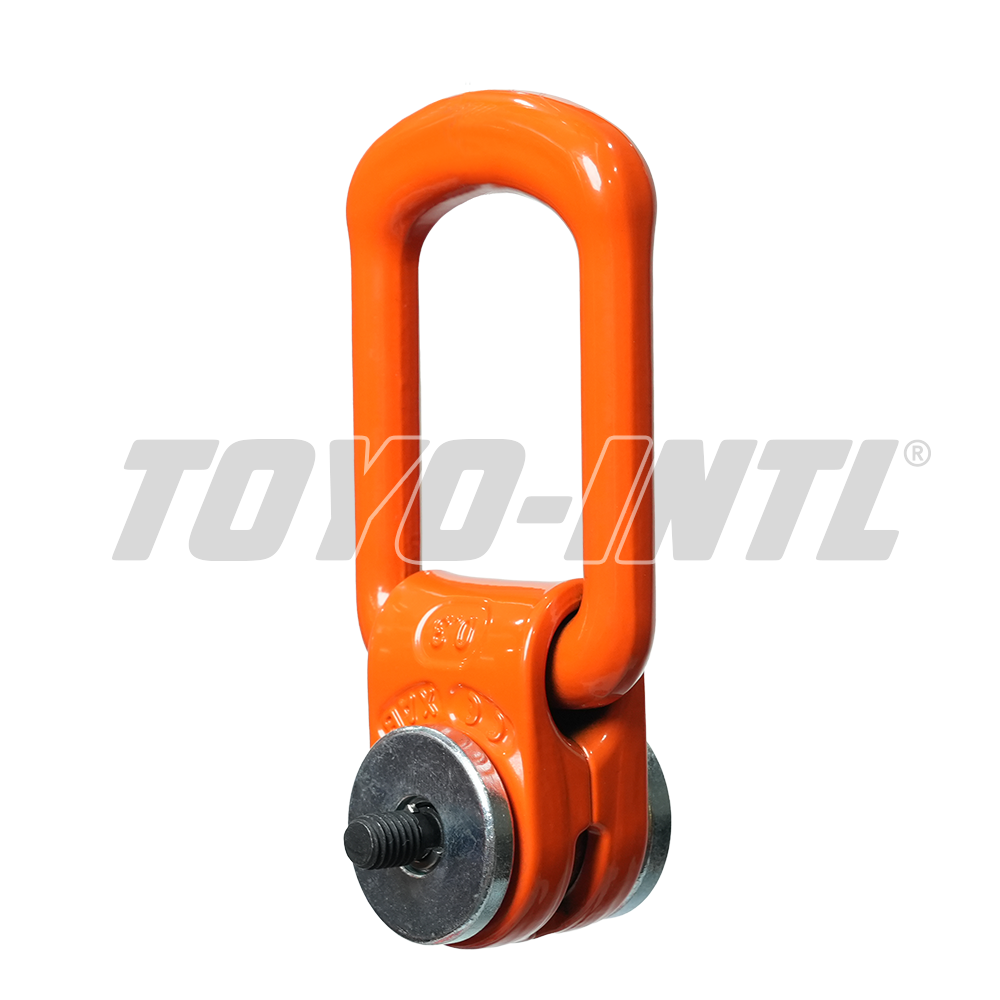

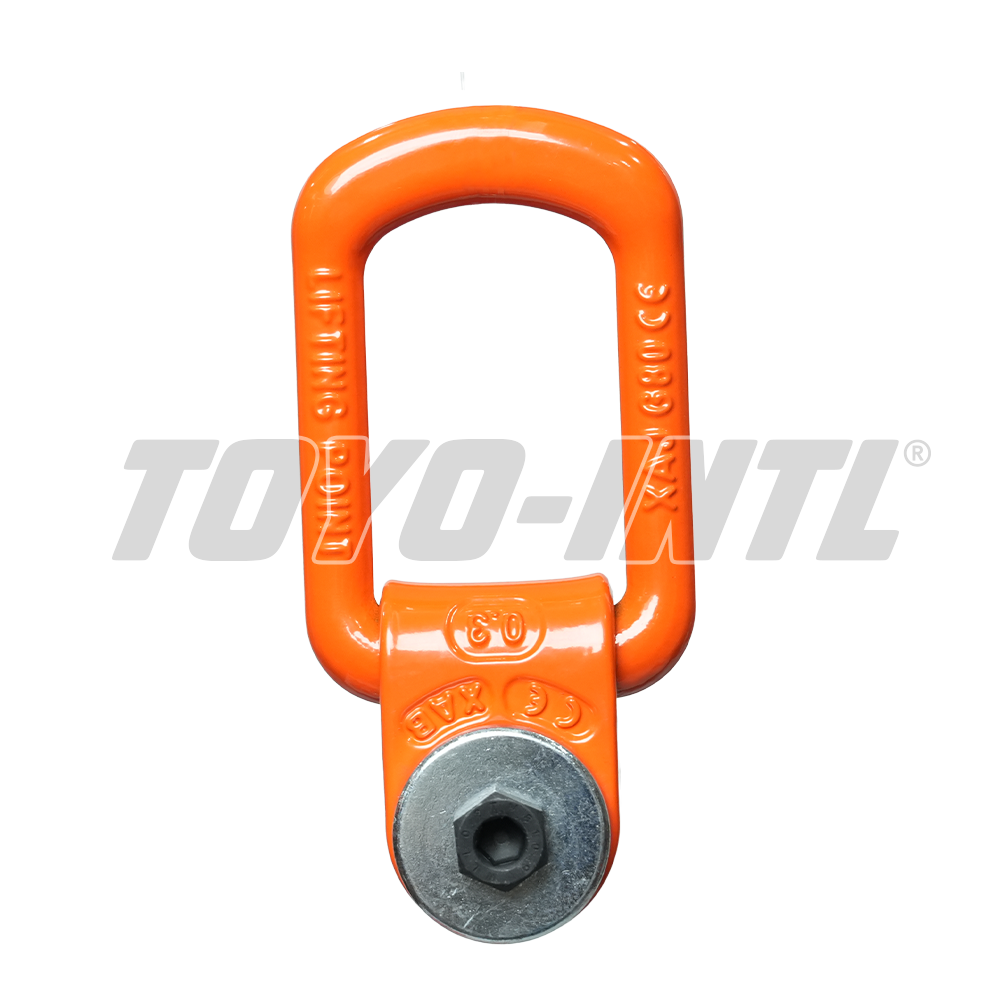

TOYO-INTL Heavy Duty Side Pull Lifting Point for Mold Flipping product view 1 1

TOYO-INTL Heavy Duty Side Pull Lifting Point for Mold Flipping product view 2 1

TOYO-INTL Heavy Duty Side Pull Lifting Point for Mold Flipping

Name: TOYO-INTL Heavy Duty Side Pull Lifting Point for Mold Flipping
Brand: TOYO-INTL
SKU: SPS

Categories: HOOK & LINK

Why Choose TOYO-INTL

Product Description:

The SPS is presented as a side-load lifting point.
The source specifies a 4:1 safety factor.
It uses high-quality alloy steel and professional forging technology.
The ring rotates 360° and pivots 180°.
A built-in positioning circlip is shown with a hanging ring that can maintain hovering.
The bolt has an anti-corrosion design for use in more conditions.
The source specifies DIN EN 1677-1 and bolt grade 10.9.
Each product is inspected with a 6g go/no-go gauge.

CHAT NOW

0086-022-59892153 Copied!

+86 177 2540 7738 Copied!

sales@toyohoisting.com Copied!

Technical Specifications

Parameters — metric thread (as printed; removed schematic columns: E, D, F, K, H, S; A/B/C were already absent)

Item	WLL/T	Thread	Locking torque/Nm	N.G./kg
SPS-M8	0.5	M8×1.25	10-40	0.65
SPS-M10	0.7	M10×1.5	10-40	0.65
SPS-M12	1	M12×1.75	15-40	0.65
SPS-M14	1.5	M14×2.0	30-100	0.66
SPS-M16	2	M16×2.0	45-130	0.67
SPS-M18	2.5	M18×2.5	100-170	1.8
SPS-M20	3	M20×2.5	100-170	1.8
SPS-M22	3	M22×2.5	100-170	1.9
SPS-M24	4.5	M24×3.0	190-280	1.9
SPS-M27	5	M27×3.0	250-500	5.3
SPS-M30	7.3	M30×3.5	270-600	5.3
SPS-M33	8	M33×3.5	270-600	5.3
SPS-M36	10	M36×4.0	270-600	5.4
SPS-M39	10	M39×4.0	350-800	5.6
SPS-M42	12.5	M42×4.5	350-800	5.8
SPS-M45	15	M45×4.5	350-800	5.9
SPS-M48S	16	M48×5.0	350-800	6.1
SPS-M48B	20	M48×5.0	350-800	11
SPS-M52	20	M52×5.0	350-900	11.4
SPS-M56	25	M56×5.5	350-900	11.5
SPS-M60	25	M60×5.5	350-600	12
SPS-M64S	32	M64×6.0	500-1000	12.5
SPS-M64B	33	M64×6.0	500-1000	42
SPS-M72X4	35	M72×4.0	500-1200	43
SPS-M72X6	35	M72×6.0	500-1200	43
SPS-M80	40	M80×6.0	500-1200	44.5
SPS-M90	45	M90×6.0	500-1500	46.5
SPS-M100	50	M100×6.0	500-1700	49

Parameters — UNC thread (as printed; removed schematic columns: E, D, F, K, H, S; A/B/C were already absent)

Item	WLL/T	Thread	TPI	Locking torque/Nm	N.G./kg
SPS-5/16	0.5	5/16	18	10-40	0.65
SPS-3/8	0.7	3/8	16	10-40	0.65
SPS-1/2	1.5	1/2	13	15-40	0.65
SPS-5/8	2	5/8	11	45-130	0.66
SPS-3/4	3	3/4	10	45-130	1.8
SPS-7/8	3	7/8	9	100-170	1.9
SPS-1	4.5	1	8	190-280	1.8
SPS-1-1/4	8	1-1/4	7	270-600	5.4
SPS-1-1/2	10	1-1/2	6	270-600	5.5
SPS-1-3/4	15	1-3/4	5	350-800	5.9
SPS-2	20	2	4.5	350-800	11.2
SPS-2-1/4	25	2-1/4	4.5	350-900	11.7
SPS-2-1/2	32	2-1/2	4	500-1400	12.5
SPS-2-3/4	33	2-3/4	4	500-1400	42.5
SPS-3	35	3	4	500-1400	43.5
SPS-3-1/4	40	3-1/4	4	500-1400	44
SPS-3-1/2	42	3-1/2	4	500-1700	44.5
SPS-3-3/4	45	3-3/4	4	500-1700	46.5
SPS-4	50	4	4	500-1700	49

Features & Benefits

ITEM NO.	Working Load WLL/T	M	E	A±3	B±3	C	D	F	K±3	H	S	Locking Torque Nm	N.G Kg
SPS-M8	0.5	M8×1.25	12	50.5	37	76	14	101.5	49.5	38	8	10-40	0.65
SPS-M10	0.7	M10×1.5	16	50.5	37	76	14	101.5	49.5	38	8	10-40	0.65
SPS-M12	1	M12×1.75	18	50.5	37	76	14	101.5	49.5	38	8	15-40	0.65
SPS-M14	1.5	M14×2.0	21	50.5	37	76	14	101.5	49.5	38	8	30-100	0.66
SPS-M16	2	M16×2.0	24	50.5	37	76	14	101.5	49.5	38	8	45-130	0.67
SPS-M18	2.5	M18×2.5	40	74.5	54	105	20	145	77	48	12	100-170	1.8
SPS-M20	3	M20×2.5	40	74.5	54	105	20	145	77	48	12	100-170	1.8
SPS-M22	3	M22×2.5	40	74.5	54	105	20	145	77	48	12	100-170	1.9
SPS-M24	4.5	M24×3.0	40	74.5	54	105	20	145	77	48	12	190-280	1.9
SPS-M27	5	M27×3.0	40	98.5	73	146	30	201.5	103.5	68	17	250-500	5.3
SPS-M30	7.3	M30×3.5	45	98.5	73	146	30	201.5	103.5	68	17	270-600	5.3
SPS-M33	8	M33×3.5	50	98.5	73	146	30	201.5	103.5	68	17	270-600	5.3
SPS-M36	10	M36×4.0	54	98.5	73	146	30	201.5	103.5	68	17	270-600	5.4
SPS-M39	10	M39×4.0	58	98.5	73	146	30	201.5	103.5	68	17	350-800	5.6
SPS-M42	12.5	M42×4.5	63	98.5	73	146	30	201.5	103.5	68	17	350-800	5.8
SPS-M45	15	M45×4.5	63	98.5	73	146	30	201.5	103.5	68	17	350-800	5.9
SPS-M48S	16	M48×5.0	63	98.5	73	146	30	201.5	101.5	70	17	350-800	6.1
SPS-M48B	20	M48×5.0	68	120	93	182	36	249	125	84	19	350-800	11
SPS-M52	20	M52×5.0	68	120	93	182	36	249	125	84	19	350-900	11.4
SPS-M56	25	M56×5.5	78	120	93	182	36	249	125	84	19	350-900	11.5
SPS-M60	25	M60×5.5	90	120	93	182	36	253	125	88	19	350-600	12
SPS-M64S	32	M64×6.0	90	120	93	182	36	253	125	88	19	500-1000	12.5
SPS-M64B	33	M64×6.0	100	185	144	280	58	395	195	136	36	500-1000	42
SPS-M72X4	35	M72×4.0	110	185	144	280	58	395	195	136	36	500-1200	43
SPS-M72X6	35	M72×6.0	110	185	144	280	58	395	195	136	36	500-1200	43
SPS-M80	40	M80×6.0	120	185	144	280	58	395	195	136	36	500-1200	44.5
SPS-M90	45	M90×6.0	135	185	144	280	58	395	195	136	36	500-1500	46.5
SPS-M100	50	M100×6.0	150	185	144	280	58	395	195	136	36	500-1700	49
