TOYO-INTL ESH Eye Hook With Latch

Categories: HOOK & LINK

Why Choose TOYO-INTL

Product Description:

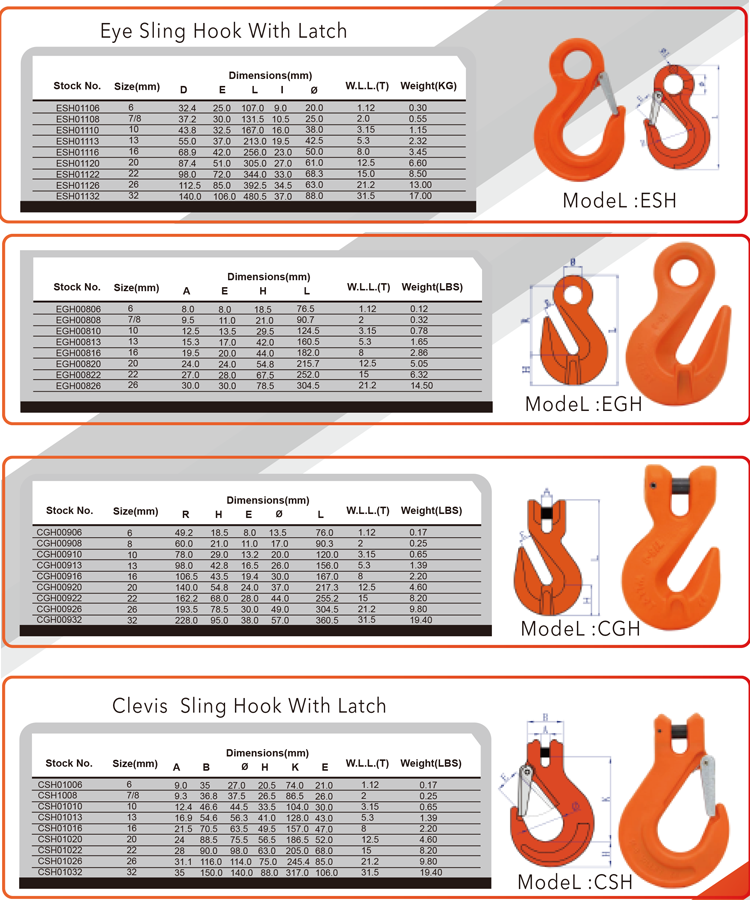

  • The product is labeled Eye Sling Hook With Latch.
  • The table lists sizes from 6 to 32 mm, including the printed 7/8 row.
  • WLL values run from 1.12 to 31.5 T.
  • A latch is visibly shown on the eye hook illustration.
  • The retained E, L, I, and diameter dimensions are printed in mm.
  • Listed weights run from 0.30 to 17.00 kg.
  • Complete semantic specifications; pure schematic letter dimensions removed:
0086-022-59892153 Copied!
+86 177 2540 7738 Copied!
sales@toyohoisting.com Copied!
share:
Share on facebook
Share on twitter
Share on linkedin
Share on whatsapp

Product Details

Technical Specifications

Stock no. Size (mm) Diameter (mm) WLL (T) Weight (kg)
ESH006 6 20.0 1.12 0.30
ESH008 7/8 25.0 2.0 0.55
ESH010 10 38.0 3.15 1.15
ESH013 13 42.5 5.3 2.32
ESH016 16 50.0 8.0 3.45
ESH020 20 61.0 12.5 6.60
ESH022 22 68.3 15.0 8.50
ESH026 26 63.0 21.2 13.00
ESH032 32 88.0 31.5 17.00

Features & Benefits
