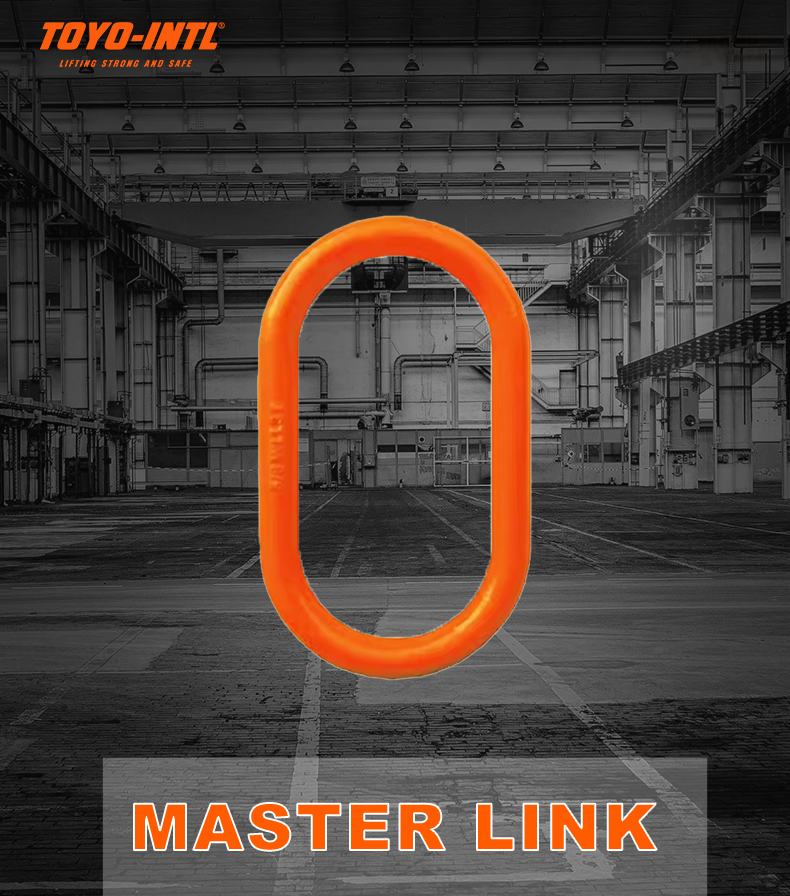

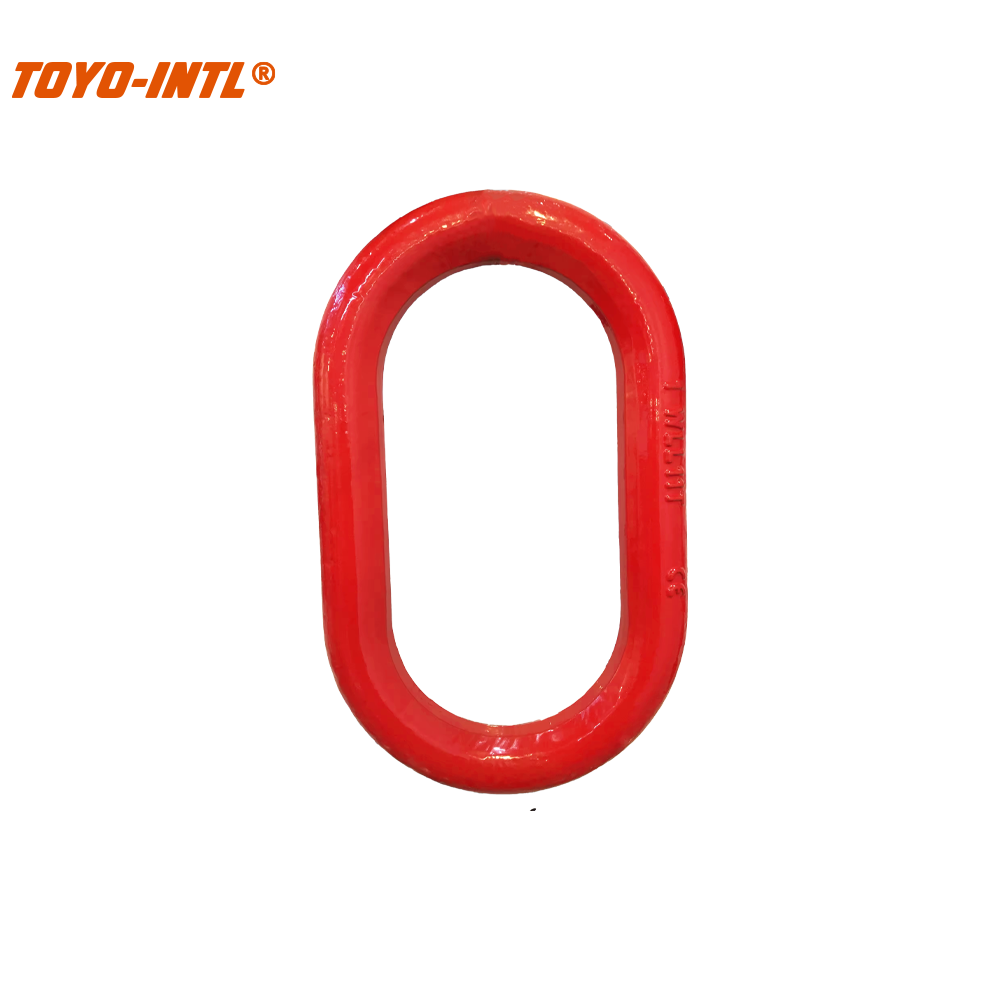

TOYO-INTL MLW Master Link

Categories: HOOK & LINK

Why Choose TOYO-INTL

Product Description:

  • Each link has a Product Identification Code (PIC) for material traceability.
  • The PIC is shown together with the size and manufacturer's mark.
  • The source specifies a larger inside width and length for use with a thimble.
  • The table identifies the product as an alloy master link, grade 80, welding type MLW.
  • The WLL column is specified at a 4:1 basis.
  • The listed WLL values run from 2 t to the printed 35/45 t entry.
  • The listed weights run from 0.45 kg to 17.20 kg.
0086-022-59892153 Copied!
+86 177 2540 7738 Copied!
sales@toyohoisting.com Copied!
share:
Share on facebook
Share on twitter
Share on linkedin
Share on whatsapp

Product Details

Technical Specifications

Product code Size D (inch) WLL 4:1/t Weight/kg
MLW-14 1/2" 2 0.45
MLW-16 5/8" 3 0.70
MLW-20 3/4" 4.7 1.05
MLW-22 7/8" 6.4 1.50
MLW-25 1" 11 2.10
MLW-28 1-1/8" 11.8 3.81
MLW-32 1-1/4" 16 4.25
MLW-38 1-1/2" 21.7 7.20
MLW-45 1-3/4" 28.4 11.55
MLW-51 2" 35/45 17.20

Features & Benefits
