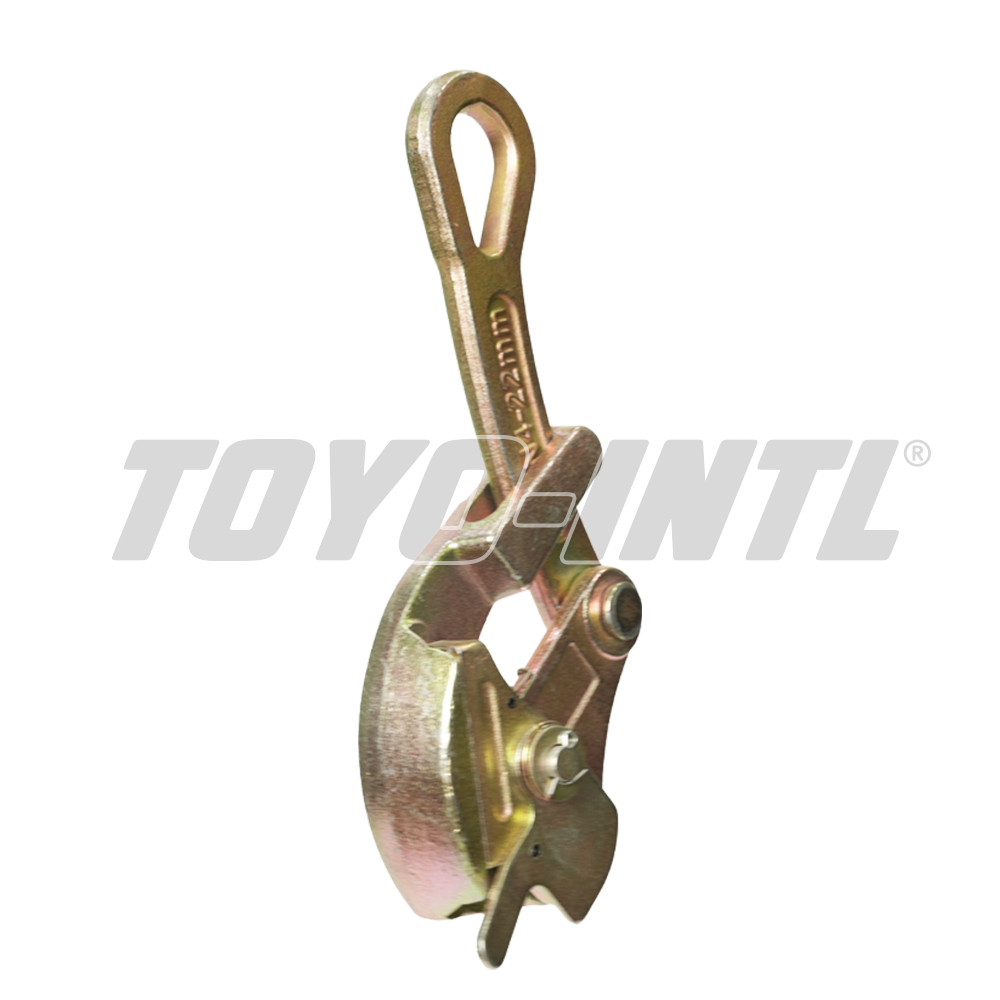

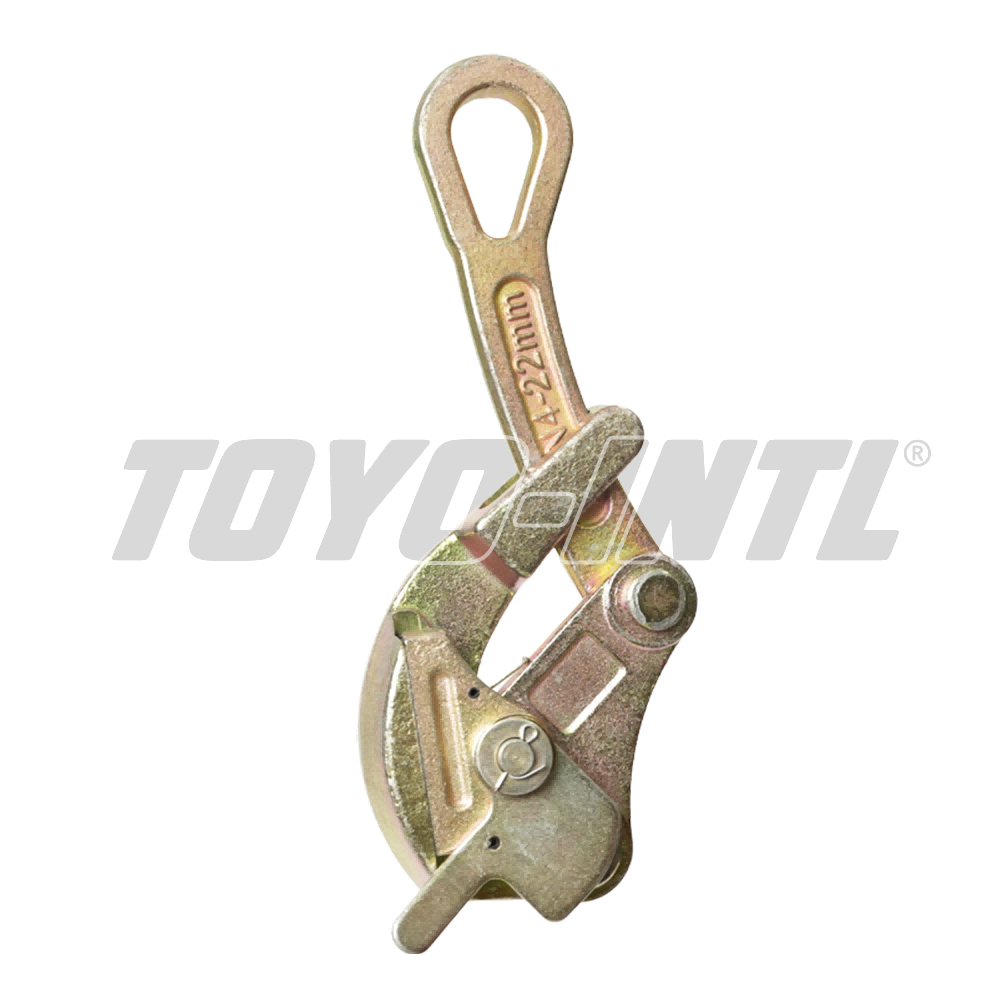

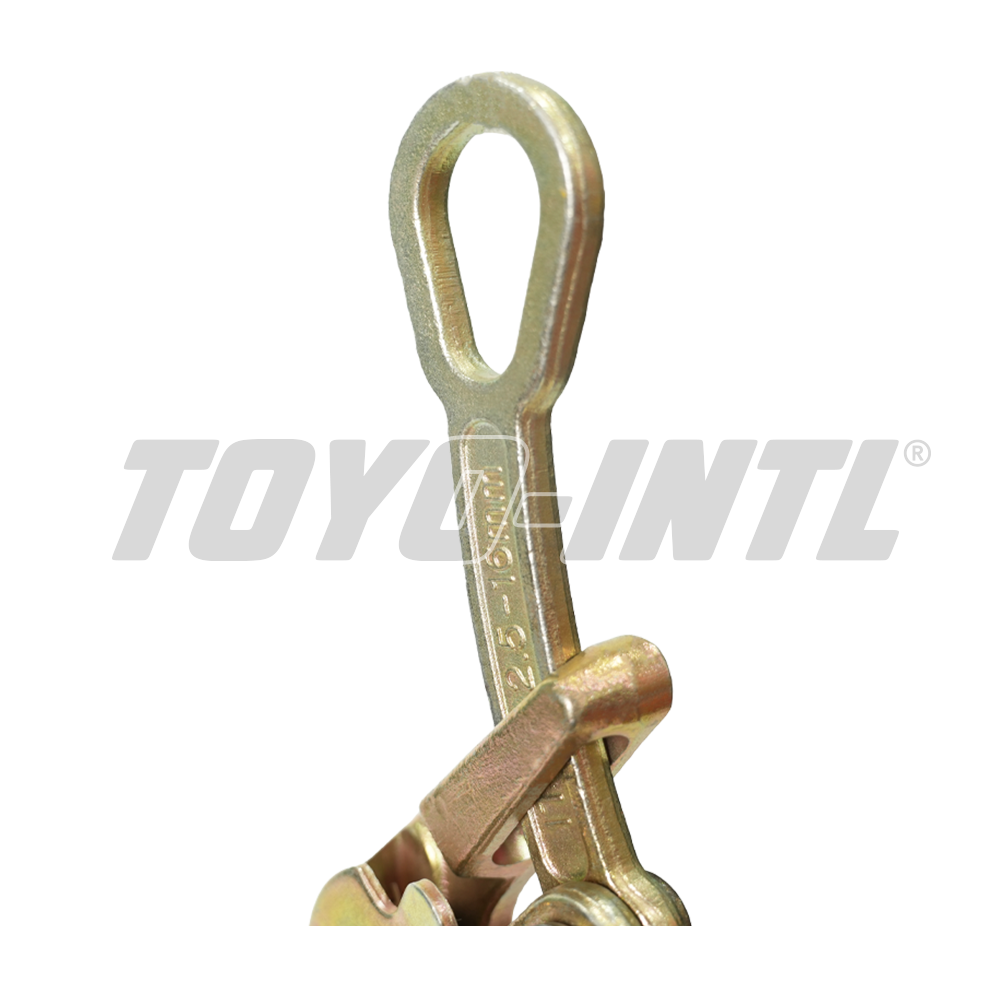

TOYO-INTL SD Grip

Categories: RIGGING HARDWARE

Why Choose TOYO-INTL

Product Description:

  • Forged alloy-steel construction with heat treatment.
  • The rack is described as having strong anti-tension performance.
  • High occlusion strength supports the cable grip.

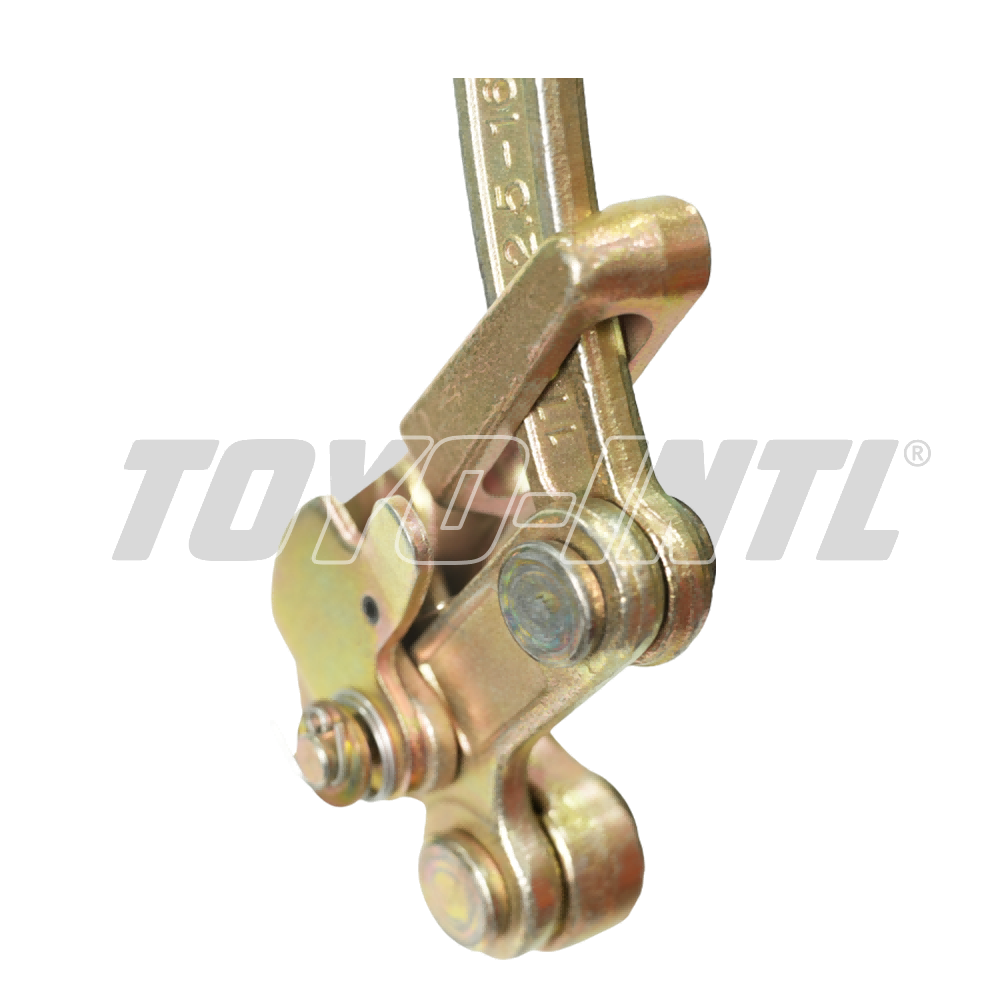

  • The clamping jaw uses 20CrMnTi carburizing steel.
  • The source states that the jaw material doubles service life.
  • Rated capacities cover 0.5, 1, 2 and 3 t.
  • Recommended wire diameters cover 1-10, 2.5-16, 4-22 and 16-32 mm.
0086-022-59892153 Copied!
+86 177 2540 7738 Copied!
sales@toyohoisting.com Copied!
share:
Share on facebook
Share on twitter
Share on linkedin
Share on whatsapp

Product Details

Technical Specifications

Model Rated capacity (t) Recommended wire diameter (mm) Net weight (kg)
SD-0.5 0.5 1-10 0.45
SD-1 1 2.5-16 0.75
SD-2 2 4-22 1.5
SD-3 3 16-32 2.5

Features & Benefits

svg> svg> svg> svg> svg>

RELATED PRODUCTs

TOYO-INTL UHR UHMWPE Rope
TOYO-INTL UHR UHMWPE Rope
TOYO-INTL JRTR 3-Strand Jute Rope
TOYO-INTL JRTR 3-Strand Jute Rope
TOYO-INTL SRTR 3-Strand Sisal Rope
TOYO-INTL SRTR 3-Strand Sisal Rope
TOYO-INTL PPTR PP Danline Rope
TOYO-INTL PPTR PP Danline Rope
TOYO-INTL Stainless Steel D Shackle
toyo-intl-stainless-steel-bow-shackle-image-1

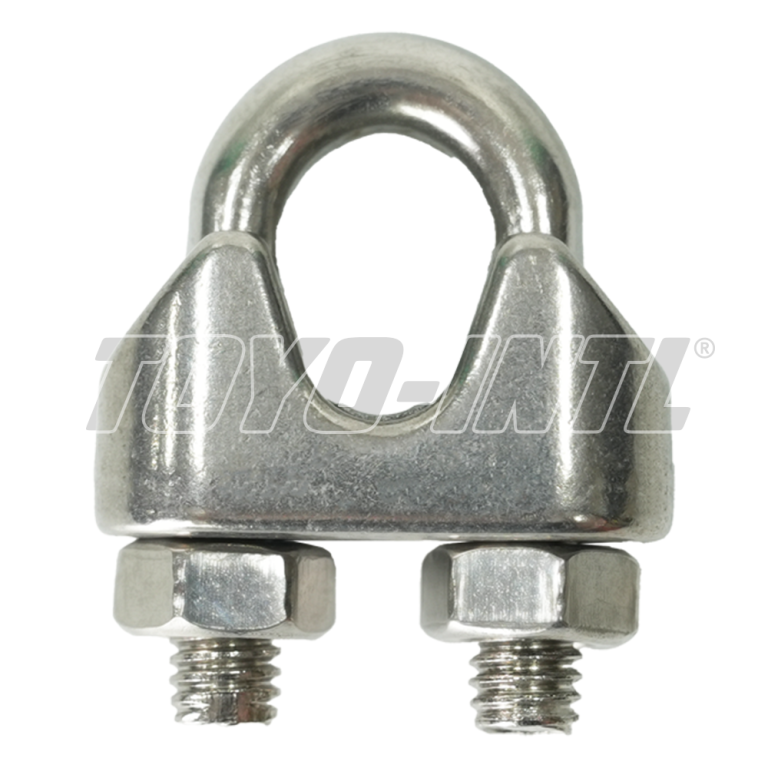

toyo-intl-din741-stainless-steel-rope-clip-image-1
